Name: BT-THEATRE HD1 - Briteq - HIT MUSIC - Fabricant et distributeur en son & lumières
Brand: Briteq
SKU: B06018

A powerful all-in-one LED theater projector with 14° ~ 55° motorized zoom.
No need for separate white and color projectors, BT-THEATRE HD1 does it all:
- Perfect WHITE with high CRI > 90Ra and CCT (temperature control) presets
- Rich selection of COLORS with color presets!
Different CCT presets for white: …., 2700K, …., 3000K, 3200K, …., 4000K,…, 5600K, ….
Various color presets (^LEE® / ^ROSCO® numbering)
Based on a 200 watt 5 color RGBAL LED (red, green, blue, amber, lime)
Very quiet operation: heat-pipe technology with quiet cooling fan and different presets (live, studio, …)
DMX control: 4 different modes for maximum flexibility
RDM functionality for easy remote installation: DMX addressing, channel mode, ….
Flicker-free TV recordings thanks to the adjustable high refresh rate!
Four dimmer settings with different behavior and speed.
Manual control for dimming, color, CCT and zoom.
OLED display for easy navigation in the configuration menu!
In case of DMX failure, you can choose between blackout and freeze mode.
Lock function to prevent unwanted changes to the settings.
Rugged extruded aluminum housing.
3 and 5 pin DMX I/O + powerCON I/O for easy daisy-chaining.

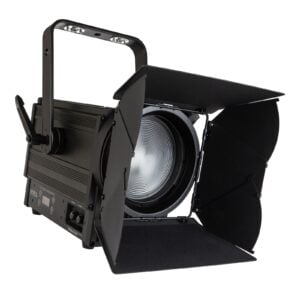

Barn door (BT-THEATRE BARN2) available as an option.

Specification: BT-THEATRE HD1

Beam angle (°)	14°–55°
Brand	Briteq
Colour	Black
Colour temperature	1,800–8,000 K
Connections	Input: 3-pin XLR, 5-pin XLR, RDM, powerCON / Output: 3-pin XLR, 5-pin XLR, powerCON
Controllable colours	Amber, Blue, CLA, Green, Lime, Red, RGBAL
CRI	90
Dimensions	450 × 290 × 260 mm
Display	OLED
Function	Autonomous, DMX, Manual, Motorized zoom
Lamp type	LED
Lux	1,428 lux at 5 m
Mounting type	Standard hook (optional)
Net weight	7.56 kg
No. of DMX channels	8 to 19
Power consumption	240 W
Power supply	AC 100 – 240 V, 50 / 60 Hz
Protection class	IP20
Protocol	DMX
