BTI-VERSABEAM

A versatile floodlight for indoor and outdoor use.

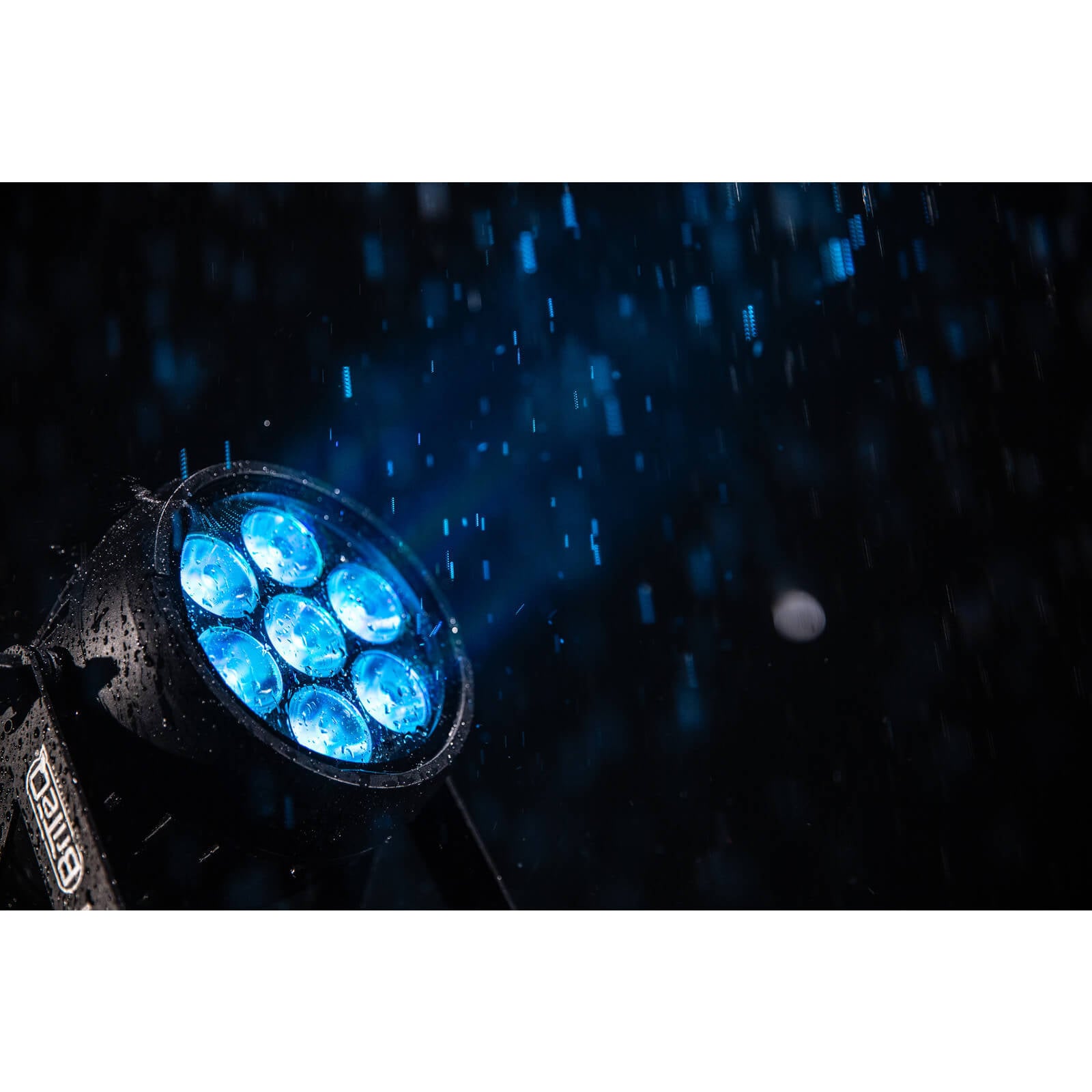

The BTI-VERSABEAM is a compact, IP65-rated floodlight that is equally at home in indoor installations and outdoor use. Seven 15-W RGBL LEDs deliver a narrow 12° beam (2,430 lux at 5 m), which can be widened to 26° using the included frost filter: a single fixture for two lighting modes, from a precise beam to broader illumination.

Four ways to control it.
The VERSABEAM adapts to any setup: standalone (custom colors, color and temperature presets, or automatic changes), wired or wireless DMX with 4 channel modes (3-channel HSV, 4-channel RGBL, 4-channel LEDCON02, 8-channel STAGE for extended control), in master/slave mode to synchronize multiple units without DMX (wireless connection or XLR cabling), or with the infrared remote control, including in master/slave mode. The built-in wireless transceiver is compatible with the W-DMX G4S protocol.

Intuitive controls, silent cooling.
The graphical OLED display shows essential information, including wireless DMX signal strength, with touch-sensitive button navigation. Cooling is entirely passive, with no fan: no operating noise—a real advantage for indoor installations where silence is key, including in the theater world, where the absence of background noise is often a requirement in the specifications.

Connectivity and Mounting.
Dual bracket compatible with structural clamps or optional omega brackets. powerCON TRUE1 AC input/output for easy daisy-chaining; waterproof 5-pin XLR input/output connectors, convertible to 3-pin XLR using the optional BT-XLR5TO3 KIT.

Compatible with the BTI-AKKUBEAMER series.
The BTI-VERSABEAM shares the same DMX compatibility and colorimetry as the BTI-AKKUBEAMER, allowing them to be combined in the same installation without any difference in color rendering between the units. A 120 × 60 cm flight case for 10 projectors is available as an option for transport.

Key Features:

• 7 RGBL LEDs, 15 W, IP65, for indoor and outdoor use
• 12° beam (2,430 lux at 5 m), 26° frost filter included
• 4 modes: standalone, wired/wireless DMX, master/slave, IR remote control
• Built-in Wireless DMX, W-DMX G4S protocol
• Passive cooling, quiet operation
• OLED screen, touch buttons
• Compatible and mixable with the BTI-AKKUBEAMER

Technical Specifications:

• Dimensions: 17 × 23.4 × 27.9 cm
• Weight: 4.2 kg
• Power Supply: AC 100–240 V, 50/60 Hz
• Power consumption: 72 W
• Color: black
• Display: OLED
• Mounting: optional omega bracket
• Protection rating: for outdoor use (IP65)
• Control modes: fixed standalone, automatic standalone, remote control, manual, DMX, master/slave
• Protocol: DMX, Wireless DMX, RDM
• Software: not programmable, can be updated
• DMX channels: 3 to 8, depending on the mode
• Illuminance: 2,430 lux at 5 m (12° beam angle)
• Color temperature: 2,500 K to 6,000 K
• Colors: RGBL, color mixing
• Features: Includes 1 frost filter
• Beam angle: 12° to 26°
• Maximum refresh rate: 7 kHz
• Input/output connections: 5-pin XLR, wireless DMX, RDM, powerCON TRUE1 or compatible

Compatible accessories:

• BT-XLR5TO3 KIT: 5-pin to 3-pin XLR conversion kit
• Omega bracket or structural clamp (optional, for the double bracket)
• IR-4 REMOTE: Infrared remote control (optional)
• 120 × 60 cm flight case for 10 units (optional)
