UHF410-Boost
Universal inline signal booster, 500 MHz – 1 GHz, BNC connector, 9 dB gain, compensates for signal loss over an antenna extension cable.
39,00 € inc. VAT
Extend your antenna without losing reception quality.
Running your antenna further out on an extension cable eats into signal strength. The UHF410-Boost restores it, connected inline to add 9 dB of gain across the full 500 MHz to 1 GHz band, keeping reception just as stable and sensitive as with an antenna mounted right next to the receiver. Powered directly by the receiver over the cable, no separate power supply or extra wiring needed.
A universal booster, compatible with the whole range.

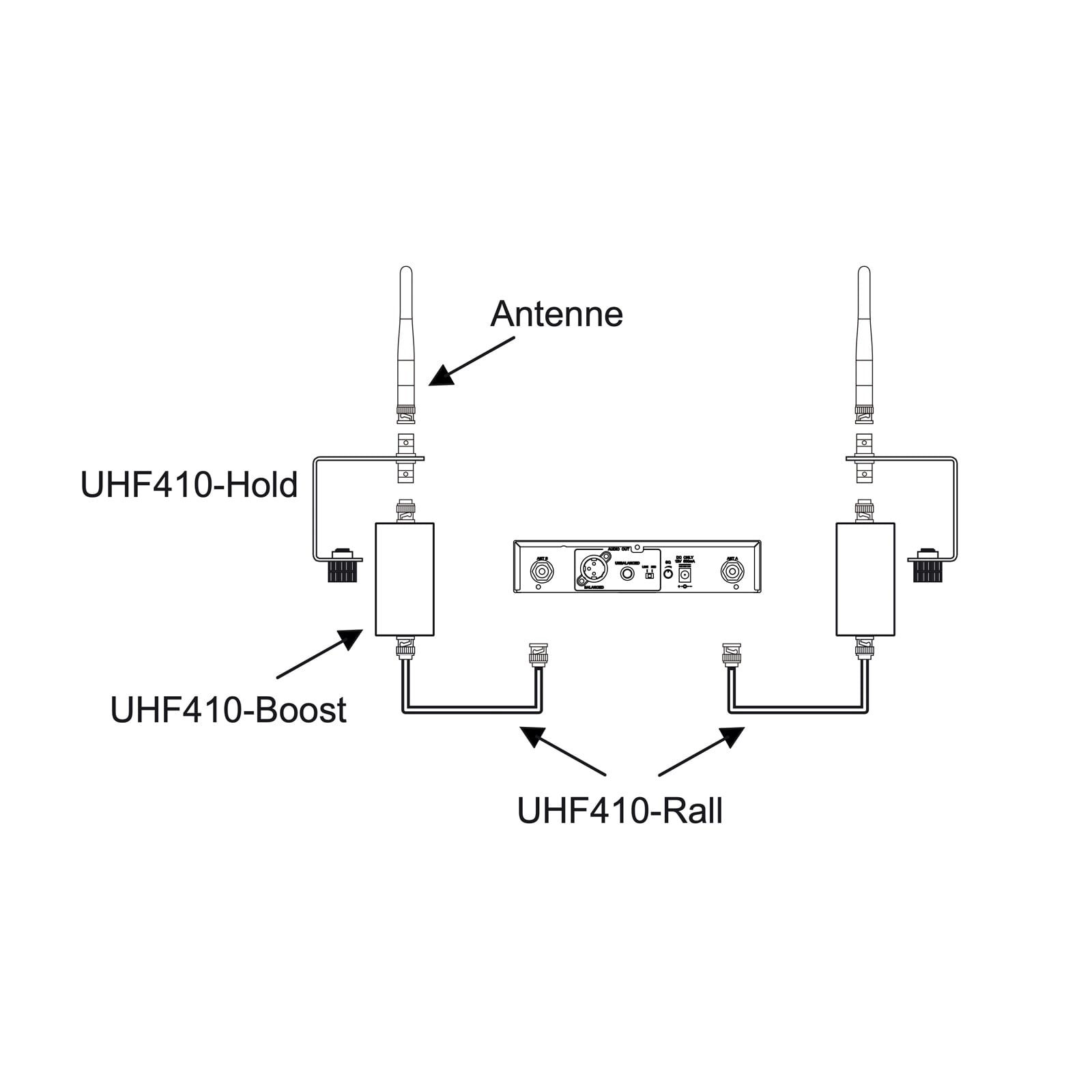

The UHF410-Boost is a universal inline booster with a BNC connector, fitting any UHF410 antenna setup that runs through an extension cable. Worth keeping a spare on the shelf for whichever install needs it. It is not compatible with the UHF410-Ant antenna, however: that one has its own dedicated booster, the UHF410-Ant-Boost, built to mount directly onto it.
Key features:
- Universal signal booster, BNC connector
- 500 MHz – 1 GHz frequency range
- 9 dB ± 1 dB gain
- Powered directly by the receiver, no separate power supply
- Compatible with any UHF410 antenna extension setup
Technical specifications:
- Brand: Audiophony
- Frequency range: 500 MHz – 1 GHz
- Gain: 9 dB ± 1 dB
- Impedance: 50 Ω
- Connector: BNC
- Power: DC 8 V, via the receiver
- Dimensions: 80 × 26 × 26 mm
Specification: UHF410-Boost
|
