UHF410-Ant-CeilingF8

An antenna that disappears into the ceiling.
The UHF410-Ant-CeilingF8 mounts flush with a false ceiling: only a slim trim ring and a discreet whip antenna remain visible, blending into the room rather than standing out as visible technical equipment. A solid fit for meeting rooms, lecture halls or places of worship, where the look of the installation matters as much as its performance.

A built-in booster, no separate unit required.
Unlike a standard antenna paired with an external booster, the UHF410-Ant-CeilingF8 has its signal amplifier built right in, delivering 9 dB of gain at 800 MHz. It’s powered directly by the UHF410-Base-F8 receiver over the coaxial cable, with no separate power supply needed.

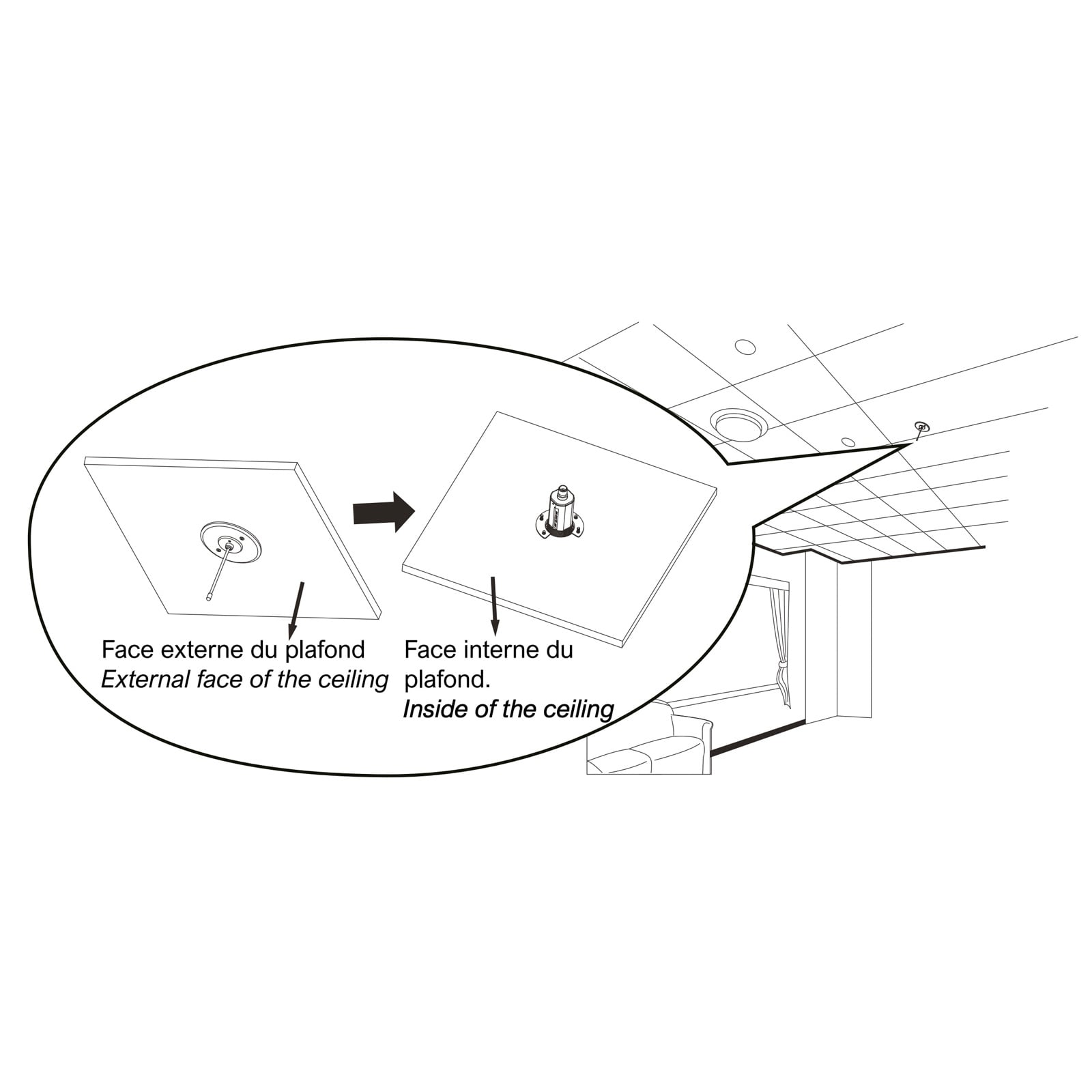

Simple installation above a false ceiling.
38 mm mounting diameter, compatible with ceiling panels up to 15 mm thick. Built for the 821 to 865 MHz frequency band.

Two versions, by frequency band.
The UHF410-Ant-CeilingF8 covers the 821-865 MHz band. The UHF410-Ant-CeilingF5, covering 510-600 MHz, is also available for installations running on that range.

Key features:

• Ceiling-mount antenna with built-in signal booster
• Flush, discreet false-ceiling installation
• 9 dB gain @ 800 MHz
• Powered directly by the receiver, no separate power supply
• 821-865 MHz frequency band (F5 version available in 510-600 MHz)

Technical specifications:

• Brand: Audiophony
• Frequency range: 821 – 865 MHz
• Gain: 9 dB @ 800 MHz
• Impedance: 50 Ω
• Max ceiling thickness: 15 mm
• Mounting diameter: 38 mm
• Power: 8-12 V DC, via coaxial cable
