VANTA BEAM

The professional beam lyre that exceeds all standards.
The VANTA BEAM is a narrow-beam lyre designed for demanding event providers and installers, delivering outstanding performance both indoors and outdoors thanks to its IP65-rated protection. Designed for event installations, concert stages, clubs, and outdoor events, it outperforms our renowned CHALLENGER BEAM model in every way: improved motorization for more precise and rapid movements, increased light output and efficiency, and an intuitive color LCD touchscreen interface with lockable buttons. As an added bonus, its IP65 rating makes it completely dustproof and splash-proof. Compact (53.5 x 22.2 x 31.9 cm) and lightweight (15.7 kg), it fits easily into any setup without compromising on stage performance.

A breathtaking LED beam.

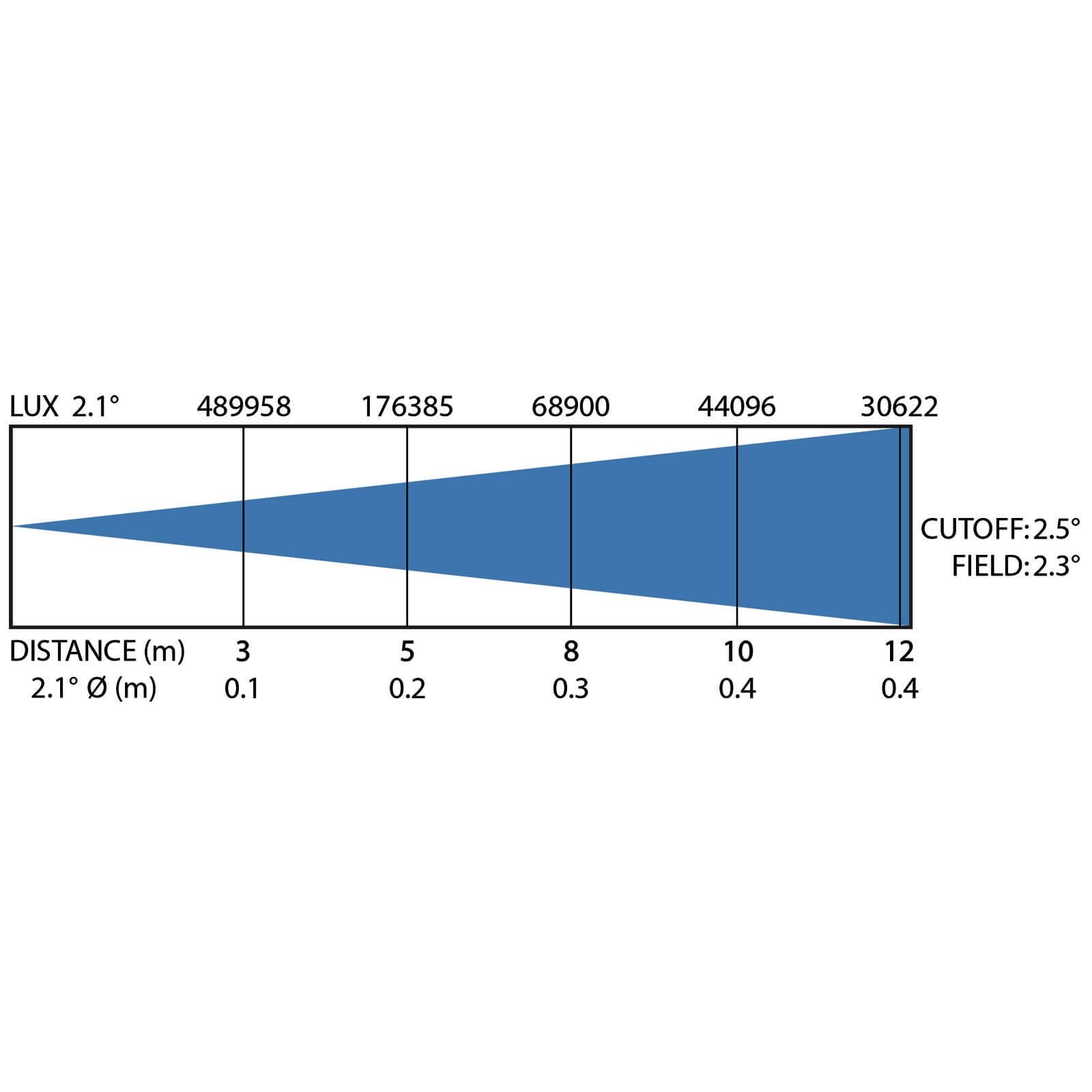

Equipped with a 300 W cool white LED (9700–10,000 K), the VANTA BEAM delivers a luminous flux of 5,141 lumens with an ultra-narrow initial beam angle of 2.5°. This extremely concentrated beam generates a light intensity of 176,385 lux at 5 meters, creating sharp, visible beams even in bright ambient light. A light output that leaves a lasting impression. The DMX-controllable motorized focus also allows you to fine-tune the beam’s sharpness to suit your stage needs.

Comprehensive creative palette: colors, gobos, and prisms.
The VANTA BEAM offers 14 colors with a multicolored rainbow effect, 13 static gobos for varied projections, and two combinable rotating prisms (8 and 16 facets) that multiply each beam to create complex and spectacular effects. The motorized frost effect instantly softens the beam for smooth transitions and a look similar to a wash fixture. Linear dimming from 0 to 100% and strobe effects round out a wide creative palette designed for all types of shows.

Built-in Wired or Wireless DMX Control.
The VANTA BEAM features native support for WDMX G4-compatible wireless DMX, simplifying outdoor use. The 3-pin and 5-pin XLR connectors ensure full compatibility with all types of DMX controllers. The moving head can be controlled via 5, 17, or 21 DMX channels depending on the desired level of control. TRUE1 powerCON inputs/outputs allow for convenient power daisy-chaining between multiple moving heads, significantly reducing the number of power cables required.

Smart standalone modes with zone restriction.
In standalone or music mode, the VANTA BEAM offers zone restriction features that allow you to limit its movement to a defined area. Perfect for installations in room corners, against a wall, or in confined spaces: the moving head will illuminate only the desired area without spilling onto surrounding walls. These standalone modes sync wirelessly in master/slave mode via WDMX, allowing you to create coordinated automatic shows across multiple moving heads without a DMX controller, whether or not they are synchronized to the beat of the music. The color LCD screen with lockable touch buttons makes configuring these zones intuitive right on site.

Technical specifications:

• Source: 1 LED, 300 W, cool white (9,700–10,000 K), luminous flux 5,141 lm
• Beam angle: 2.5° (fixed ultra-narrow beam)
• Light intensity: 176,385 lux at 5 m
• Motorized focus controllable via DMX
• Color wheel: 14 colors + multicolored rainbow effect
• Gobos: 13 static gobos
• Effects: 2 combinable rotating prisms (8 and 16 facets), motorized frost filter
• Dimming: 0 to 100% linear with strobe effects
• Pan/Tilt: high-precision, high-speed motorization
• Control: DMX-512, RDM, Wireless DMX (built-in WDMX G4) — 5, 17, or 21 channels
• Modes: Wired DMX, Wireless DMX, Standalone (with built-in microphone), Master/Slave
• Configurable zone restriction to limit movement to a defined area

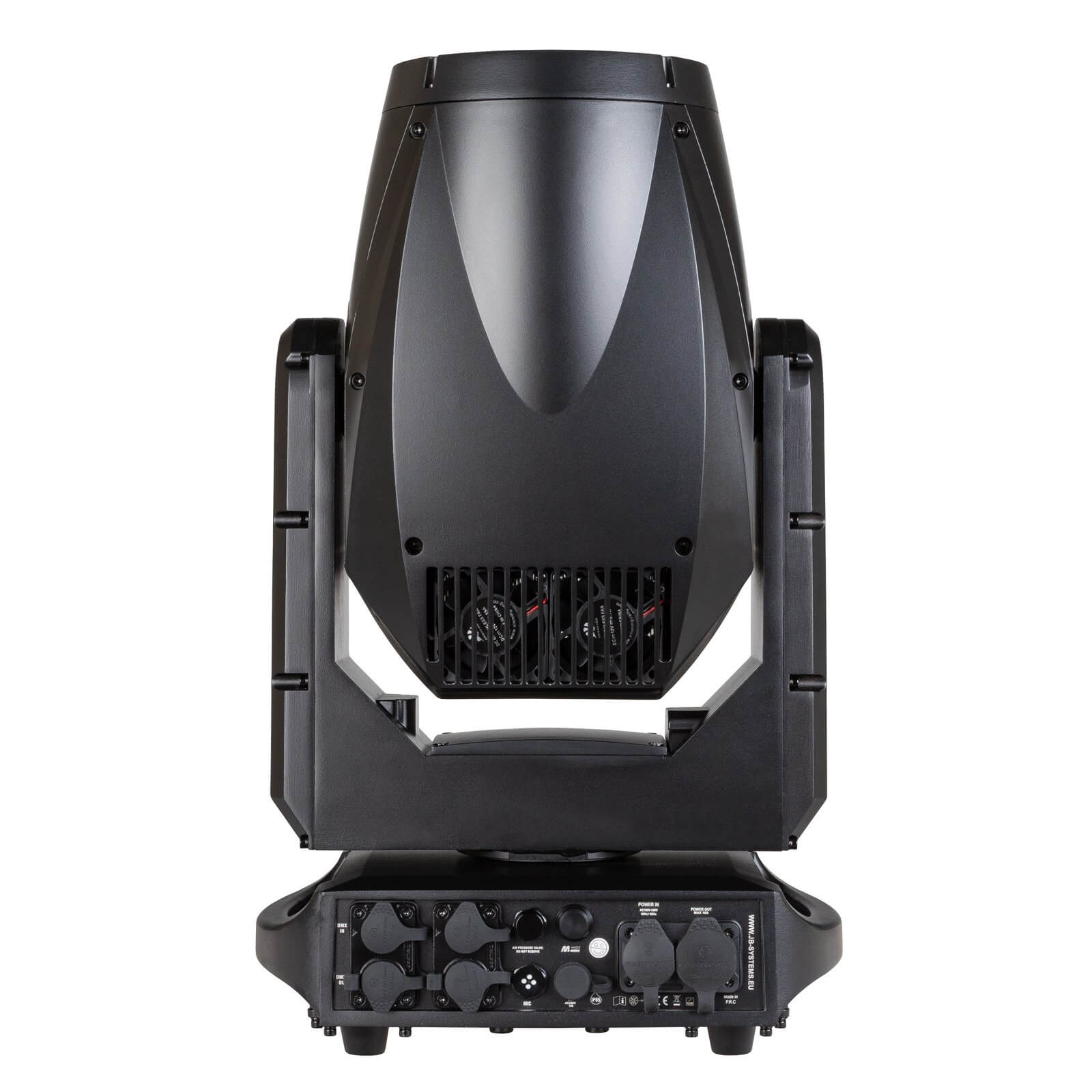

• Connections: 3-pin and 5-pin XLR DMX input and output, daisy-chainable powerCON TRUE1 input and output

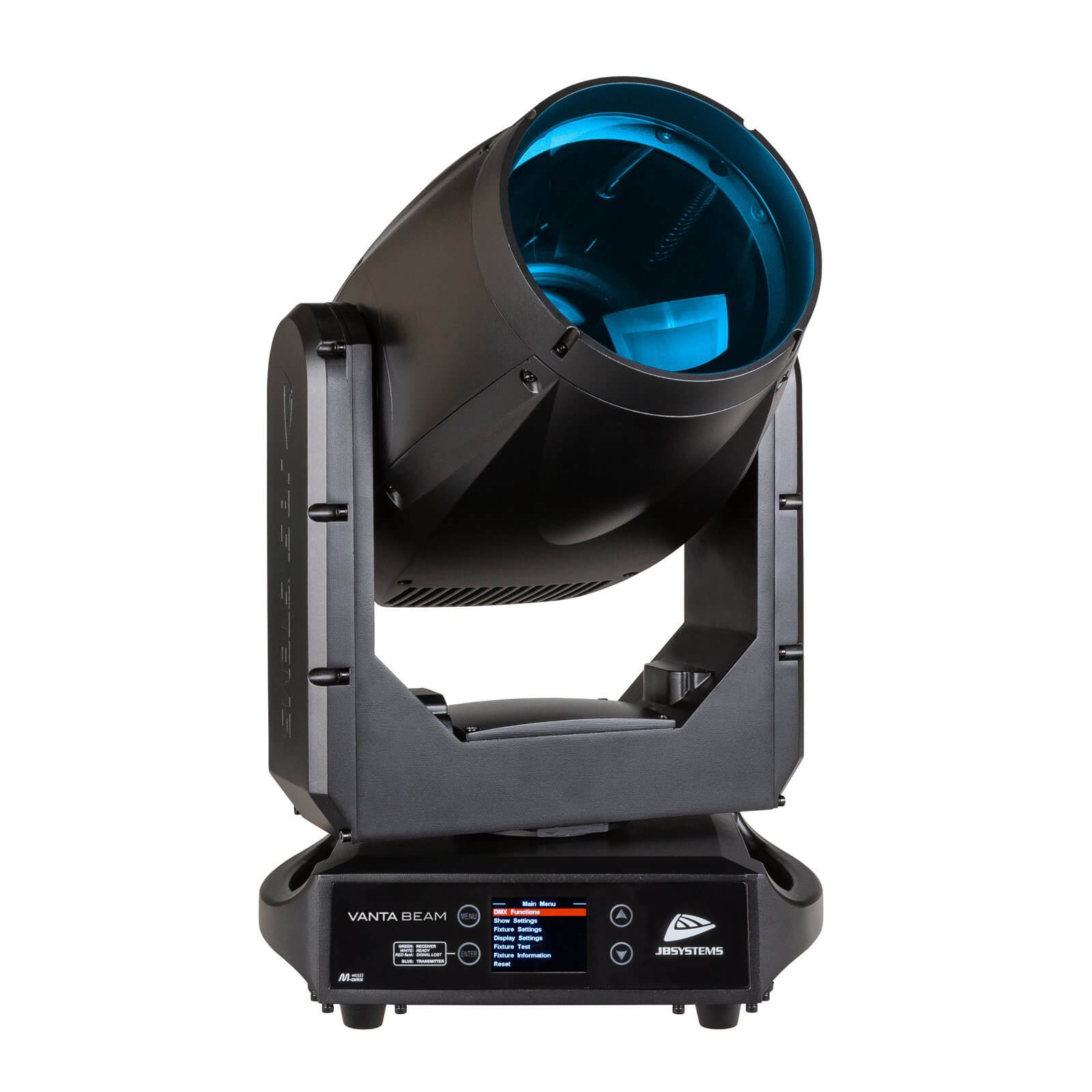

• Color LCD display with lockable touch buttons
• Power supply: AC 100–240 V, 50/60 Hz

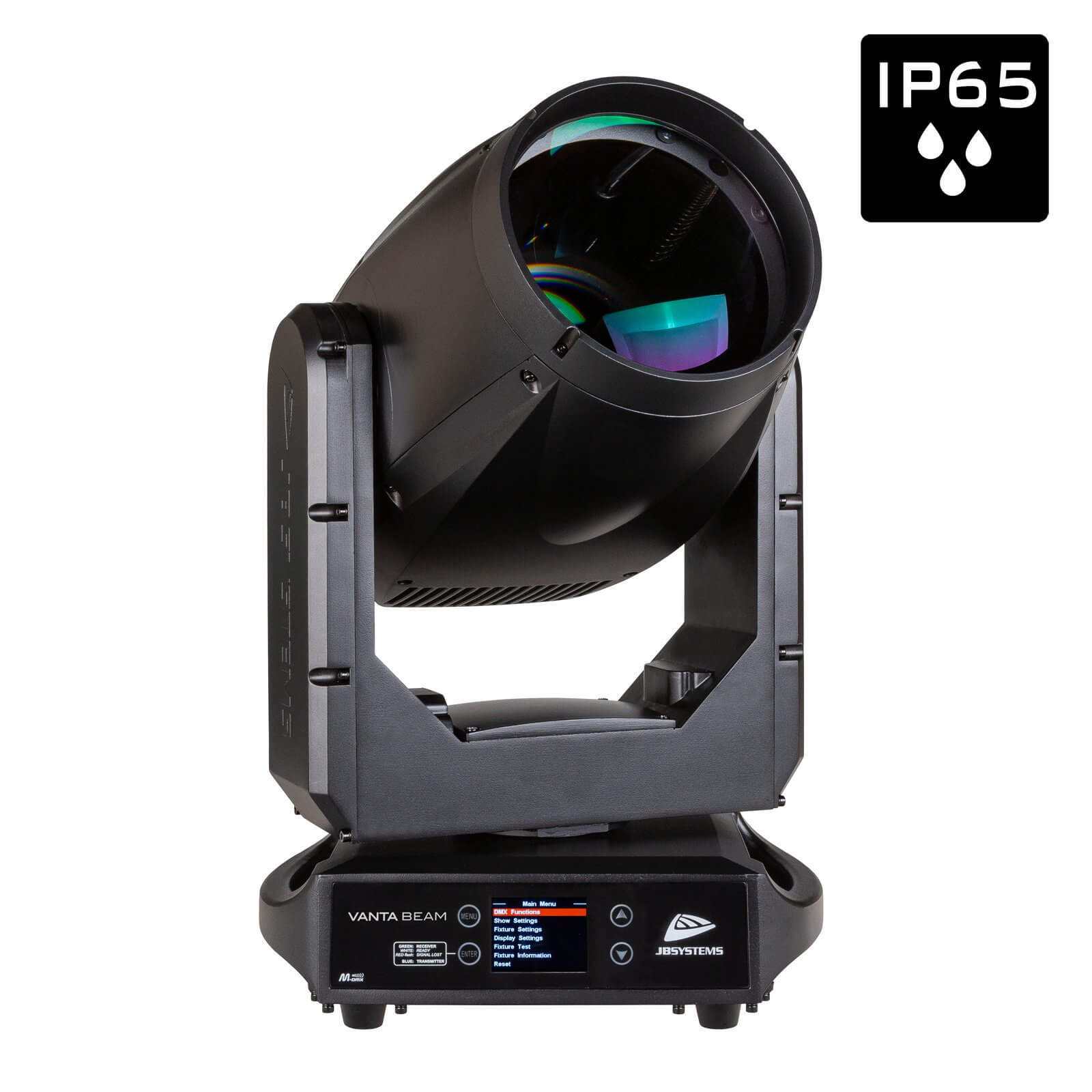

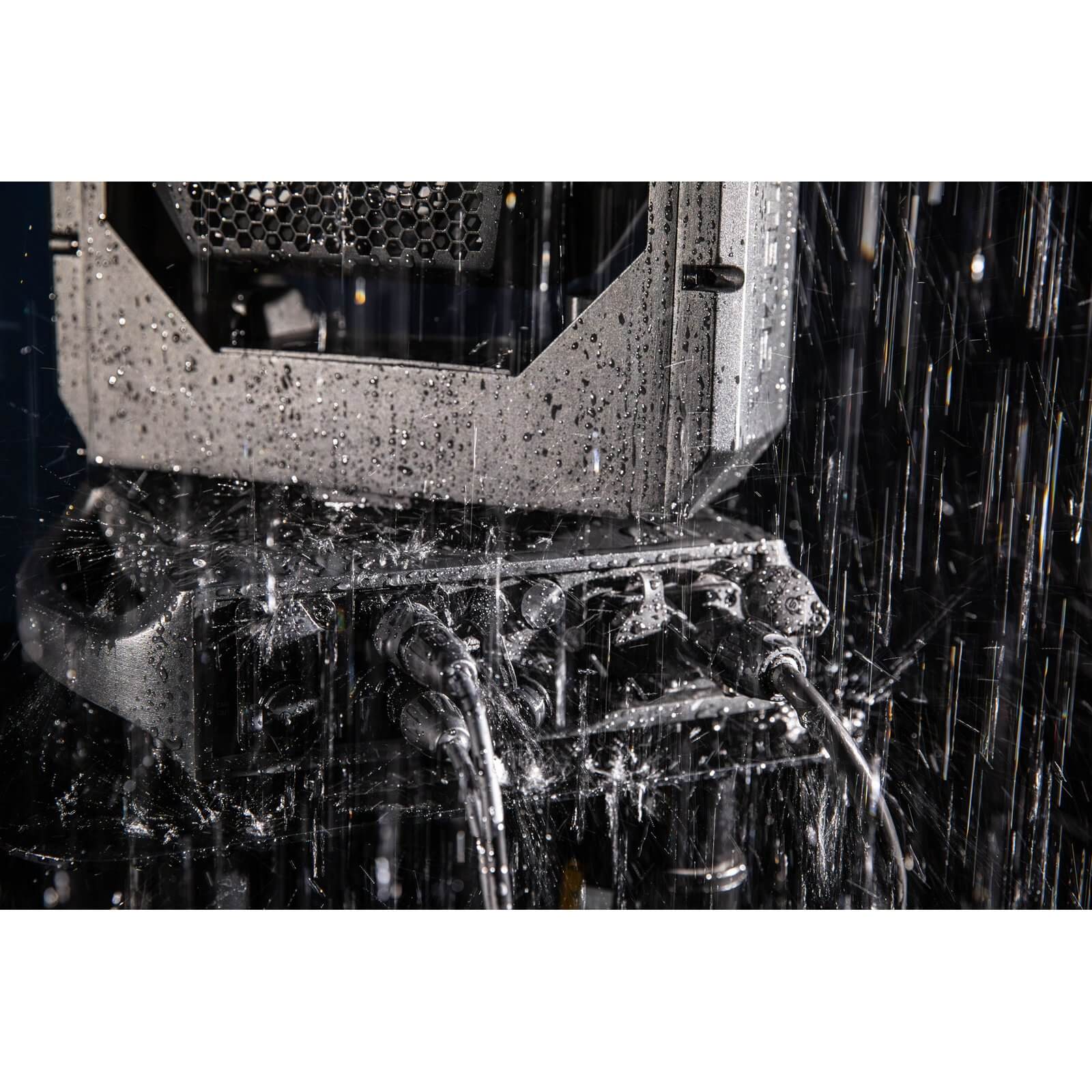

• Protection rating: IP65 (temporary outdoor installations, normal conditions)
• Construction: IP65-rated frame, black finish, omega brackets included
• Dimensions: 535 × 222 × 319 mm
• Net weight: 15.7 kg

LYRE BEAM OUTDOOR IP65

VANTA BEAM or VANTA SPOT: Which One Should You Choose?

4.5° narrow beam, 32,502 lux at 5 m, 3-facet prism. The comparison details the optical differences between the two moving heads.

See the comparison →
