VANTASPOT
Choose the VANTA SPOT if you need creative versatility with gobo projections, wide zoom and the ability to switch instantly from tight beam effects to detailed textured projections.
VANTA SPOT →
VANTA SPOT or VANTA BEAM
Which moving head should you choose?
VANTA moving heads set a new standard in professional outdoor lighting with their IP65 protection and enhanced performance. SPOT and BEAM share the same philosophy – total reliability outdoors, quality motorisation, built-in wireless DMX – but meet different stage needs. VANTA BEAM vs VANTA SPOT: here is how to choose.
IN SUMMARY
Choose your style.
VANTABEAM
Choose the VANTA BEAM if you are looking for maximum visual impact with sharp beams, spectacular aerial effects and record light intensity to cut through large spaces.
VANTA BEAM →300WLED power
IP65Waterproof rating
WDMXBuilt-in G4 wireless
COMPARISON
Quick comparison table.
| Feature | VANTA SPOT | VANTA BEAM |
|---|---|---|
| Type of effects | Projections + beams | Dynamic beams |
| LED power | 300W | 300W |
| Beam | 4.5° to 39.4° (zoom) | 2.5° fixed |
| Max intensity | 32,502 lux @5m (4.5°) | 176,385 lux @5m |
| Gobos | 8 static + 8 rotating | 13 static |
| Prisms | 1 (3 facets) | 2 (8 and 16 facets) |
| Colours | 10 | 14 |
| Motorised zoom | Yes (4.5-39.4°) | No |
| Focus | Yes | Yes |
| Motorised frost | Yes | Yes |
| IP65 | Yes | Yes |
| WDMX G4 wireless DMX | Yes | Yes |
| Weight | 15 kg | 15.7 kg |
Detailed technical specifications
| Feature | VANTA SPOT | VANTA BEAM |
|---|---|---|
| Type | Outdoor hybrid spot moving head | Outdoor beam moving head |
| Protection | IP65 | IP65 |
| LED source | 300 W white (7800K) | 300 W cool white (9700-10000K) |
| Luminous flux | 4175 lumens | 5141 lumens |
| Intensity (lux at 5 m) | 32,502 lux (4.5°) | 176,385 lux (2.5°) |
| Beam angle | 4.5° to 39.4° (motorised zoom) | 2.5° (fixed) |
| Focus | Motorised (DMX) | Motorised (DMX) |
| Colours | 10 colours + open | 14 colours + rainbow |
| Fixed gobos | 8 + open | 13 static |
| Rotating gobos | 8 + open (16 mm diam.) | – |
| Prisms | 1 rotating prism (3 facets) | 2 combinable prisms (8 + 16 facets) |
| Motorised frost | Yes | Yes |
| Dimming | 0-100% + strobe | 0-100% + strobe |
| DMX channels | 5 / 17 / 20 | 5 / 17 / 21 |
| Wireless DMX | Built-in WDMX G4 | Built-in WDMX G4 |

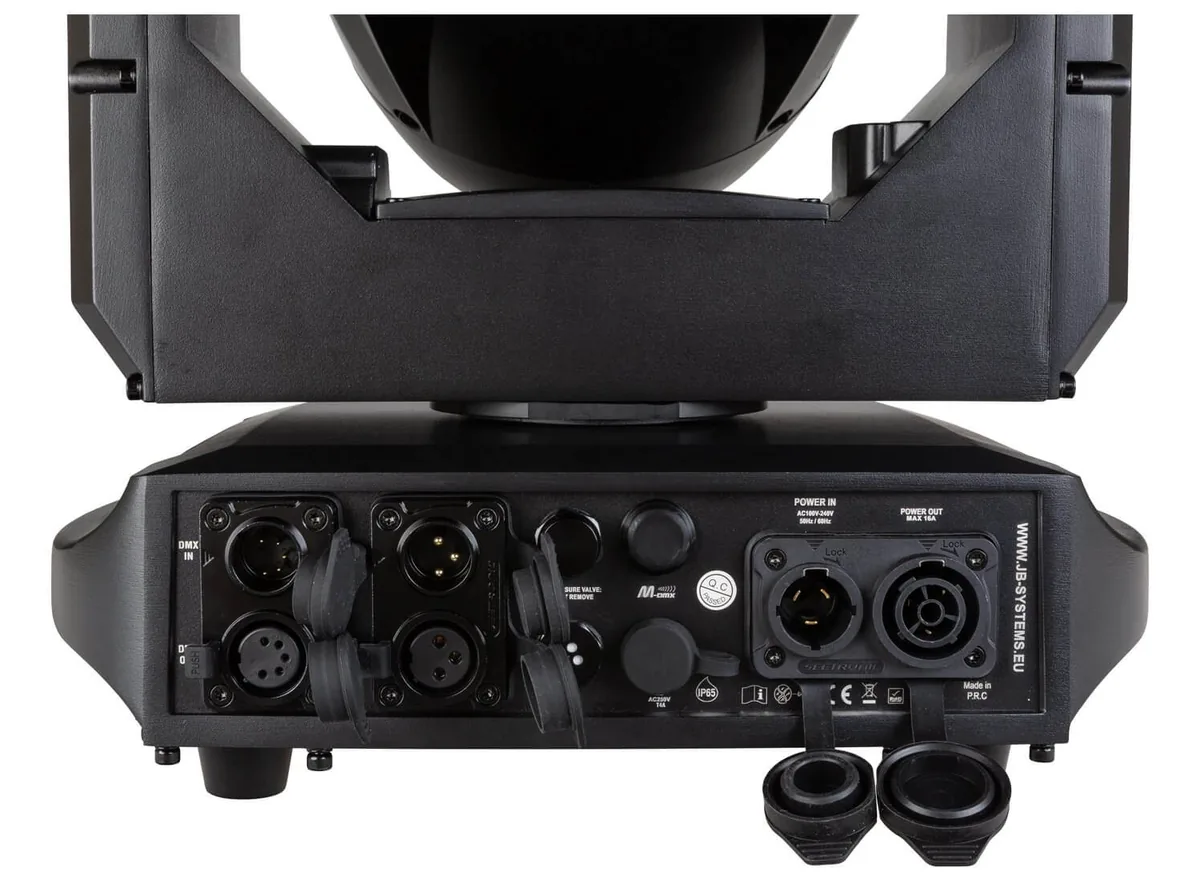

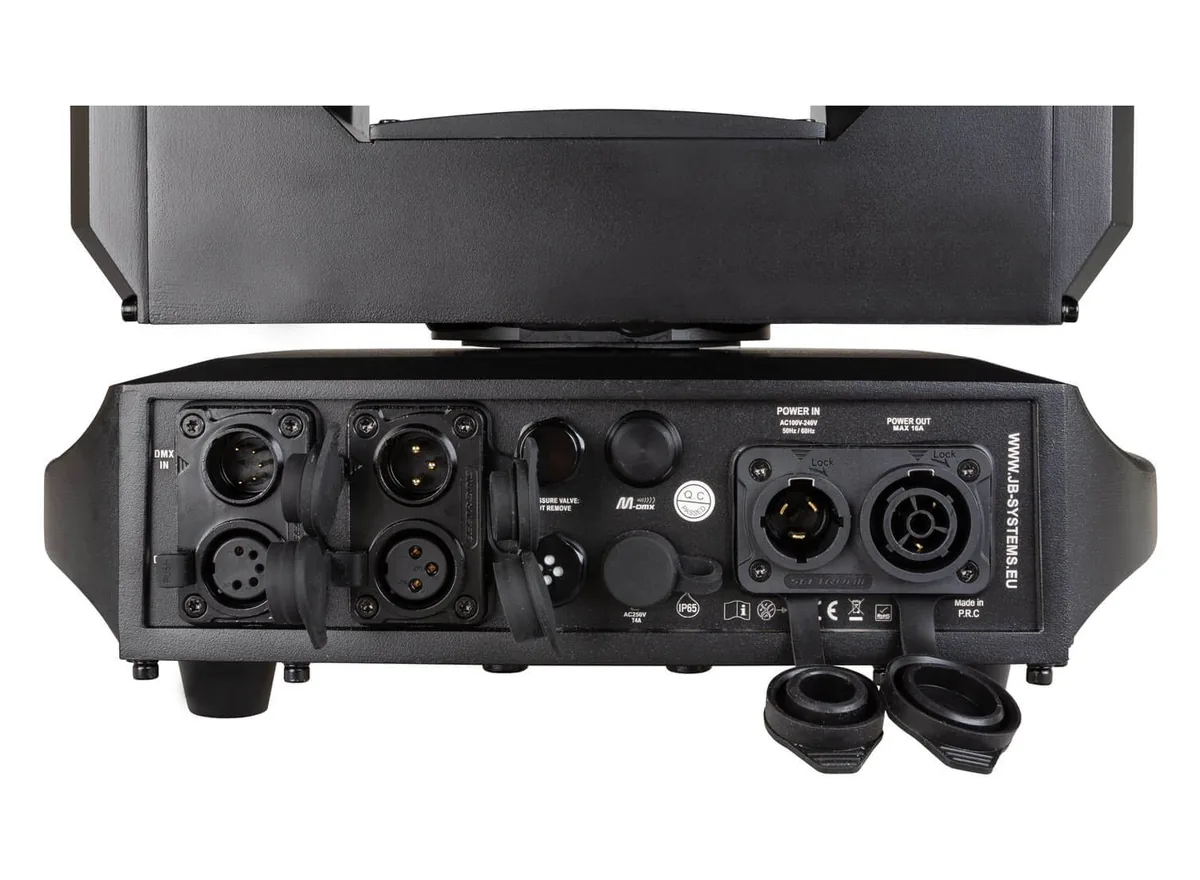

| DMX connectors | 3 + 5-pin XLR (in/out) | 3 + 5-pin XLR (in/out) |
| Power | powerCON TRUE1 (linkable) | powerCON TRUE1 (linkable) |
| Modes | DMX, auto, sound, M/S (wired + wireless) | DMX, auto, sound, M/S (wired + wireless) |
| Zone restriction | Yes | Yes |
| Display | Colour LCD, lockable | Colour LCD, lockable |
| Dimensions | 55.3 × 22.2 × 31.9 cm | 53.5 × 22.2 × 31.9 cm |
| Weight | 15 kg | 15.7 kg |

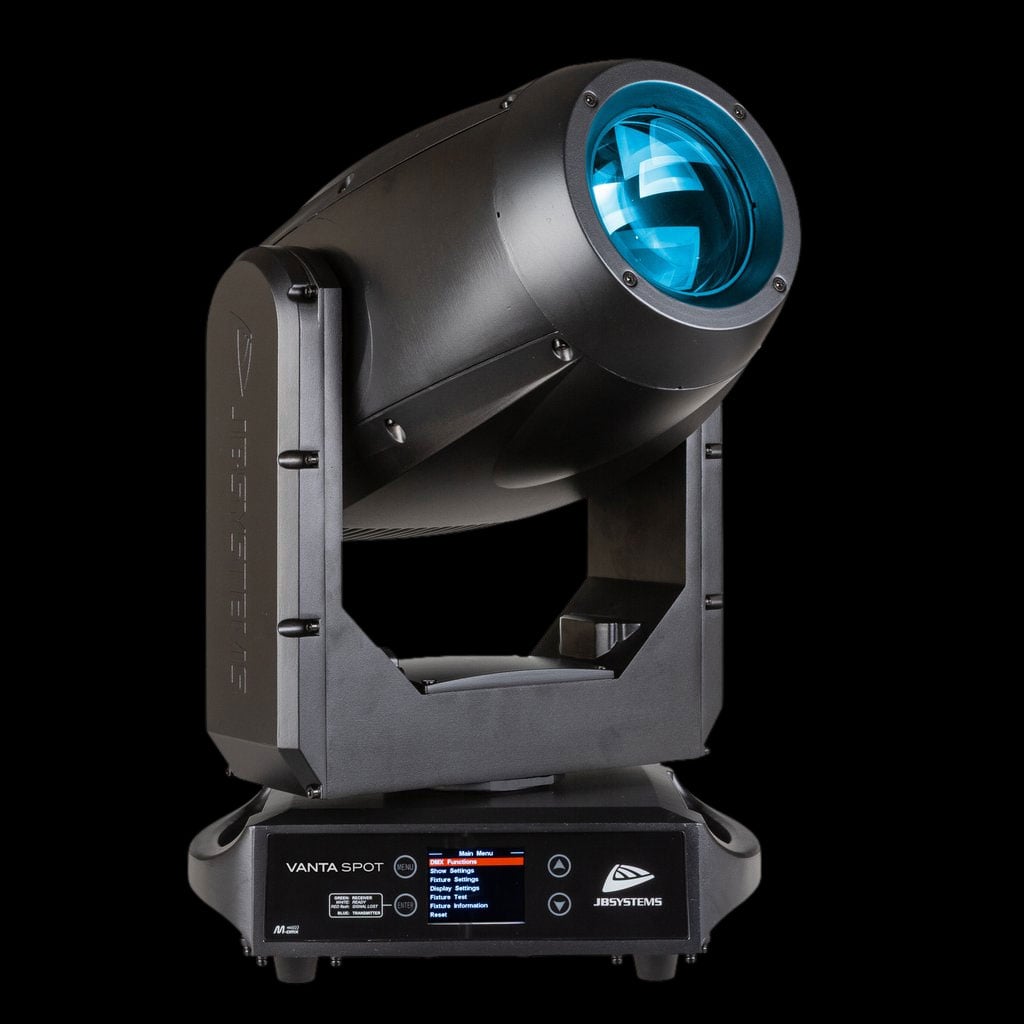

VANTA SPOT
Creative versatility.
Do you need varied projections and a wide range of use?
4.5° – 39.4°Motorised zoom
32,502Lux at 5 m (4.5°)
15 kgWeight
8+8Fixed + rotating gobos
13-facet prism
10Colours
The VANTA SPOT offers maximum versatility thanks to its 4.5° to 39.4° motorised zoom. In narrow mode, it produces powerful beams (32,502 lux at 5 m). In wide mode, it projects detailed gobos over large surfaces. Its two gobo wheels (8 fixed + 8 rotating) offer unrivalled creative richness: textures, logos, complex patterns, rotation effects. The 3-facet prism adds an extra dimension to the projections, widening the projection angle even further, while the frost filter gives a result close to a wash moving head.
To put it simply, a moving head like the VANTA SPOT gives access to a wide palette of effects. Narrow or wide beams, shaped by fixed or rotating gobos, with or without a prism or frost, all enhanced by a broad colour palette. Just as comfortable with slow movements as with fast ones, the VANTA SPOT is both a dynamic fixture and a formidable tool for enhancing large surfaces. And while beams are necessarily revealed by smoke or haze, gobo projection can easily do without them. Perfect for venues where smoke is not available.
Ideal for:
- Corporate events (logo projection)
- Shows requiring varied lighting sets
- Outdoor architectural installations
- Multi-purpose performance venues
- Situations needing beam AND projections from the same fixture
- What it does:
- Gobo projections, textures, wide zoom, total versatility
- Its strength:
- Adaptability to every creative scenario

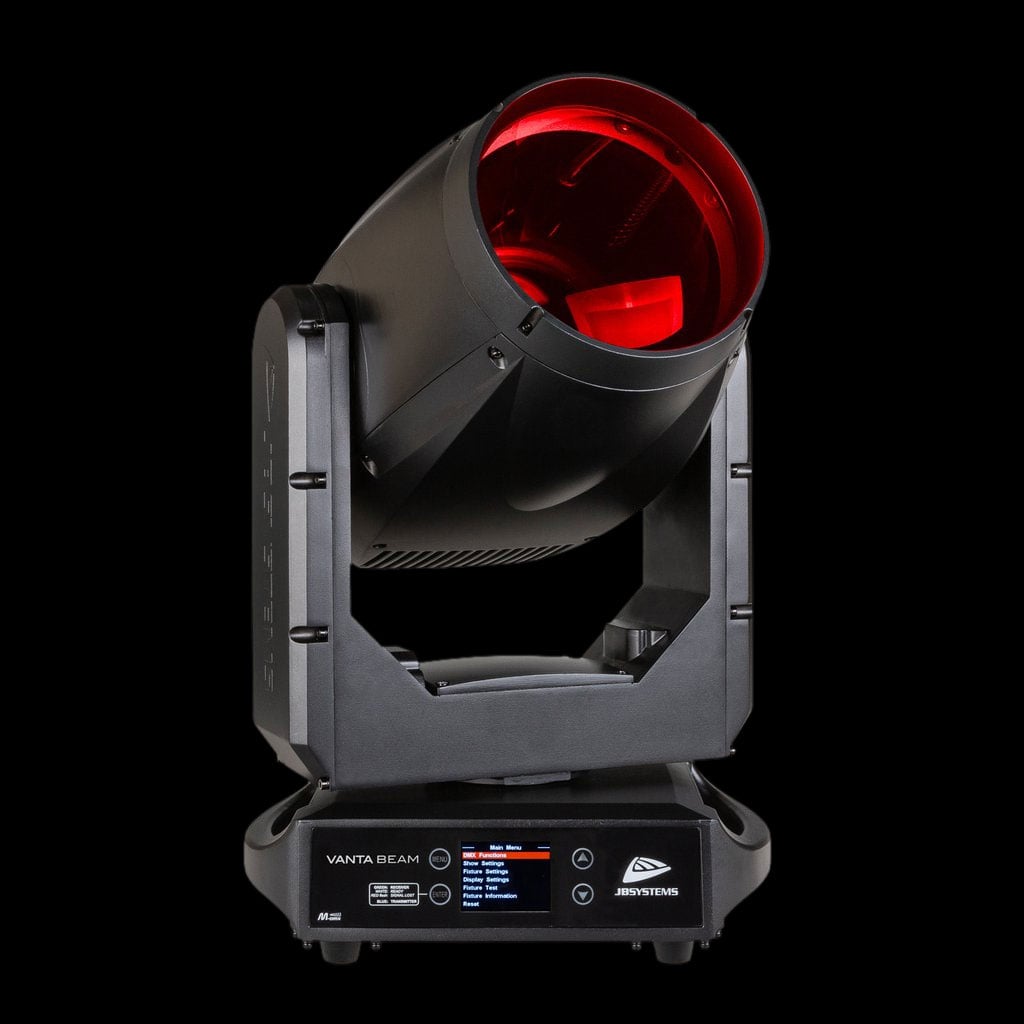

VANTA BEAM
Maximum visual impact.
Looking for sharp light beams that cut through space?
2.5°Ultra-narrow beam
176,385Lux at 5 metres
15.7 kgWeight
2Combinable prisms8 and 16 facets
13Static gobos
14Colours
The VANTA BEAM is designed to create spectacular dynamic effects with its ultra-narrow 2.5° beam producing 176,385 lux at 5 metres. Its two combinable prisms (8 and 16 facets) multiply the beam into multiple rotating rays, perfect for sweeping the stage, the audience or the event space. The motorised frost also gives a result close to a wash moving head for smooth transitions.
Broadly speaking, the VANTA BEAM is above all a dynamic effect that builds its impact on the show through very high brightness and fast movements. Its narrow beam does not cover a large surface, but it creates strong contrast with the other fixtures. Using smoke or haze, even light, is almost essential to get the most out of a moving head like the VANTA BEAM.
Ideal for:
- Outdoor festivals and concerts
- Spectacular aerial effects (with smoke/haze)
- Dynamic shows with sweeping beams
- Creating stage depth and volume
- Events requiring strong visual impact at a distance
- What it does:
- Narrow beams, dynamic effects, multiple split rays
- Its strength:
- Maximum light intensity and spectacular prism effects
COMPLEMENTARITY
Why not both?
The perfect complement.
VANTA BEAM and VANTA SPOT are not really competitors — quite the opposite. These two moving heads are complementary by nature. Used together, they create unmatched stage depth: the VANTA BEAMs sculpt the space with their sharp aerial beams and multiplying prisms that create volume and movement, while the VANTA SPOTs dress the surfaces, project textures and patterns, and give the stage its visual structure.
This combination lets you play on several dimensions: air and surfaces, dynamism and atmosphere, pure intensity and creative versatility. By synchronising both models over DMX, you create coherent lighting scenes where each moving head plays its part: maximum visual impact for the beams, creative richness for the spots. A complete show that grabs attention at every level.
And why not both? In a complete installation, combining VANTA BEAM (dynamic aerial effects) and VANTA SPOT (projections and textures) creates a comprehensive lighting palette that meets every creative need.
RECOMMENDATIONS
How many moving heads does my show need?
The number of moving heads depends on your set-up and the impact you are after. We can nevertheless share a few tips from our experience:
Two moving heads are worth far more than twice one
Unless your scene is designed around a single fixture, the value of the VANTA BEAM and VANTA SPOT comes from their number and placement.
From two moving heads upwards, you gain synchronised or deliberately offset movements, and colour and effect sequences.
Visual impact and possibilities then grow with the number of fixtures.
On a dance floor, think square
Whatever the shape of the floor, plan at least four sources positioned in a square (or rectangle): the beams cross and surround the dancers.
The goal: everyone sees effects, wherever they are on the floor.
With 4 VANTA SPOTs, on stands or on Totems, you are sure to cover a large area while enjoying a wide palette of effects.
In a multi-purpose venue, four above the stage
The budget decides the number of fixtures, but a few rules help optimise the lighting rig of a multi-purpose performance venue.
Aim for a minimum of four VANTA SPOTs spread above the stage: they cover the space and the surfaces with their structured beams and wide projection.
Outdoors, it all depends on smoke
While the VANTA SPOT and VANTA BEAM moving heads benefit from high power (300W LED) and IP65 certification for normal outdoor operation, their many effects depend entirely on whether or not there is smoke or fog.
Ambient humidity can certainly help capture light in three-dimensional space, but in fine weather you will need a powerful smoke machine for the beams to show properly.
STANDALONE MODES
Create shows without a console.
Both VANTA moving heads include powerful standalone programmes that automatically generate evolving light shows without needing a DMX controller. The built-in microphone picks up the music and times the movements, colour changes and gobo rotations to the rhythm, creating a dynamic atmosphere perfectly synchronised with the beat. In wired (via DMX cable) or wireless (via built-in WDMX G4) master/slave mode, one fixture becomes the master and automatically synchronises all the slaves: movements, colours and effects work together in perfect coherence to create a coordinated show without programming.
This feature is ideal for mobile DJs, small events, temporary installations or situations where connecting a DMX console is impractical. Simply power up the moving heads, activate standalone mode on the master, and the show starts instantly, responsive to the music and visually coherent. For permanent installations (clubs, bars, multi-purpose venues), we recommend using a DMX controller, wired or wireless, to tailor the show to your wishes and your venue.
AutoBuilt-in programmes
SoundMusic response
M / SMaster / Slave
DMXFull control
MATCHING ACCESSORY
A professional flight case.

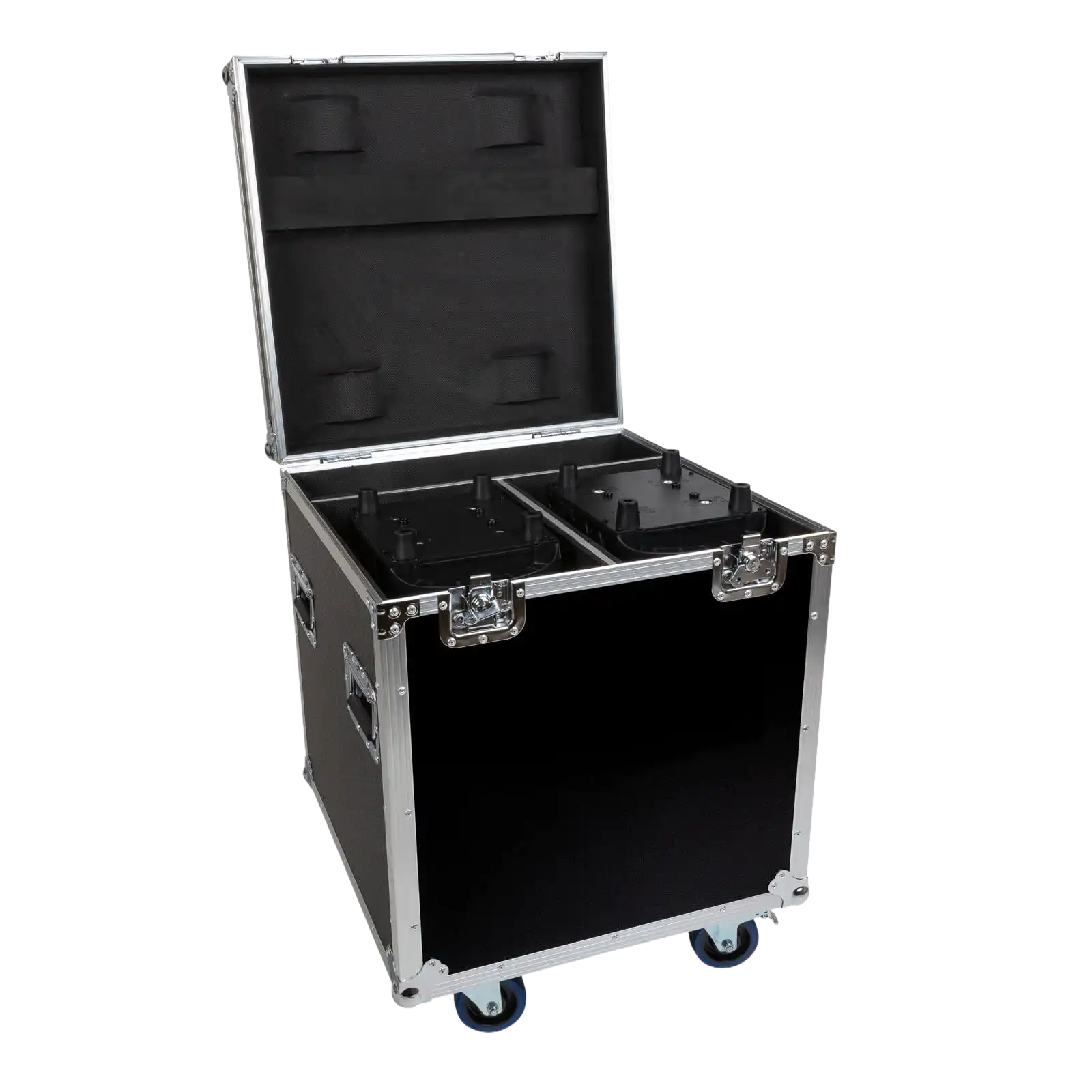

The professional flight case for your VANTA moving heads.
This flight case was specially designed to safely transport 2 VANTA SPOT or 2 VANTA BEAM moving heads with their essential accessories.
Its compact 60 x 60 cm footprint (63 cm high, 78 cm including castors) makes loading and unloading your vehicle much easier.

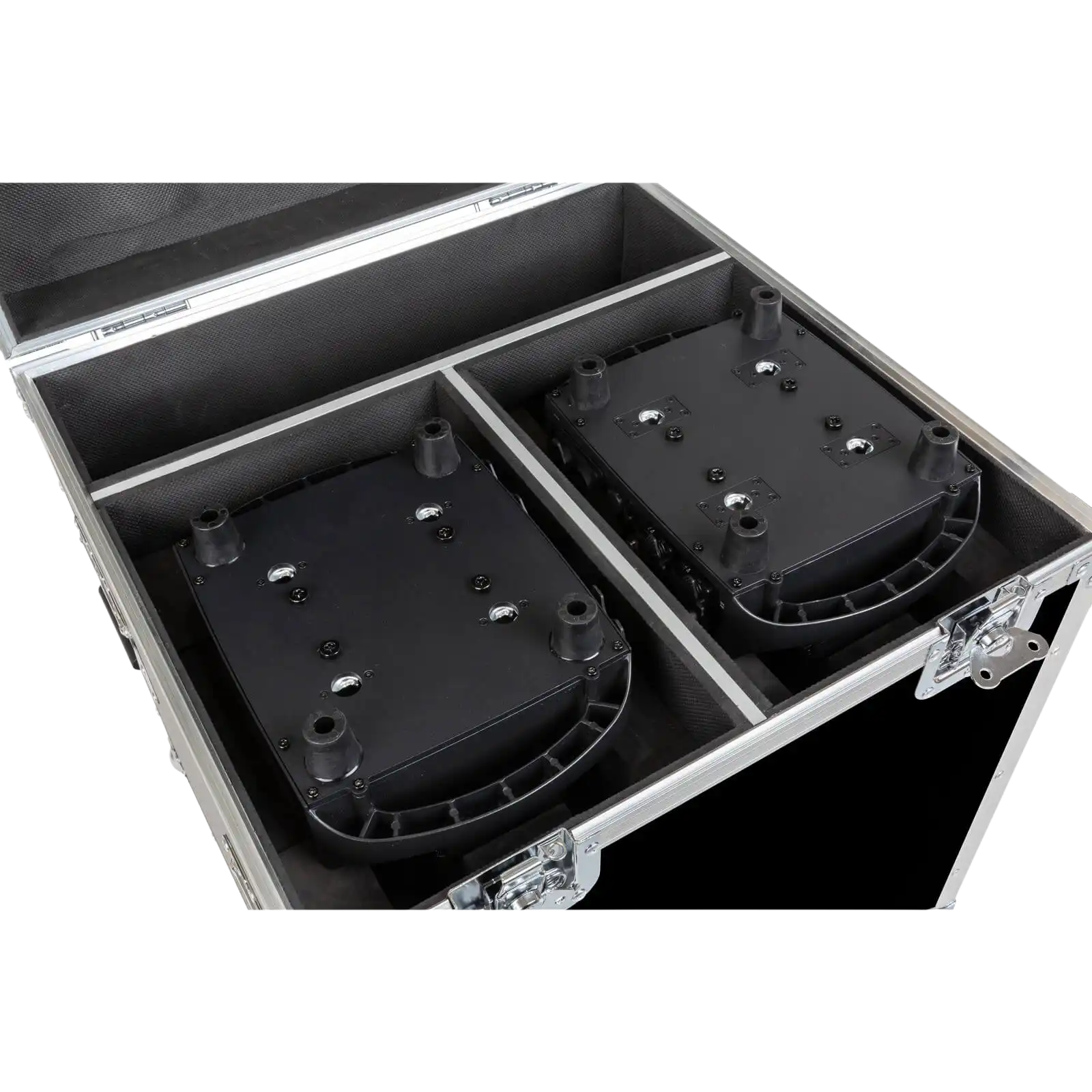

The protective foam interior is specifically shaped for VANTA moving heads, for optimal protection against shocks during transport.
An extra compartment holds your essential accessories: truss clamps, DMX cables, power cables.
Everything organised, protected, ready to go.

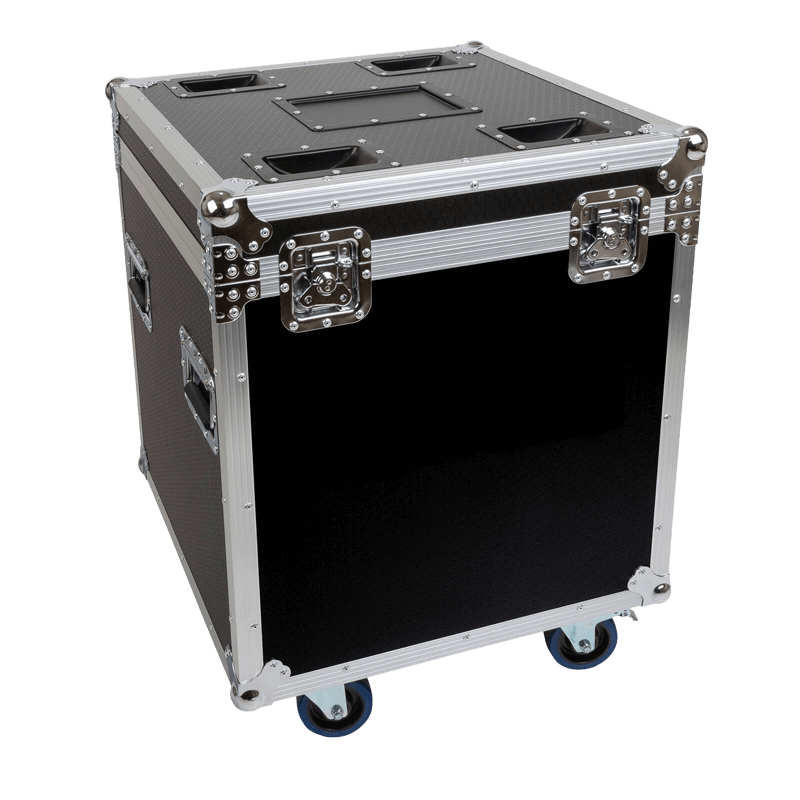

Rugged construction for the road.
Reliability starts with materials. This flight case uses solid 9 mm plywood covered with a durable black HEXA finish that resists scratches and the daily wear of the road.
Reinforced corners protect the most exposed areas during repeated handling. Two recessed folding handles on each side allow comfortable two-person handling without protruding beyond the flight case outline.
Sturdy butterfly latches keep it securely closed in transit, while a recessed label tray on top makes it quick to identify your gear.
A flight case built to last, season after season.
Self-aligning castors for easy stacking.
The key asset of this flight case is its 4 self-aligning 100 mm swivel castors in soft rubber.
This technology lets the castors automatically turn the right way when you stack one flight case on another, ensuring perfect stack stability without manual handling. Two castors with brakes secure the whole unit once in position.
You save precious time when loading and unloading, while ensuring stable, secure stacking in the truck as well as backstage.
Need help choosing?
Our technical advisers analyse your project and point you to the best solution.
Contact us →
