AMP150.4H

Four zones, compact format.
The AMP150.4H targets multi-zone installations where each line only needs moderate power: small retail, offices, corridors, meeting rooms. Four independent channels each deliver up to 150 W on a 70 V or 100 V line, with an independent voltage selector per channel at the rear and a per-channel volume control on the front panel.

Priority and supervision built in.
Beyond amplification, the AMP150.4H carries control logic designed for day-to-day operation: a priority TEST input, triggered by a dry contact on the PRI terminal, instantly switches an announcement across every zone. The FAIL (5 V fault output) and DIS (disable) contacts report the amplifier’s state to an external supervision system, useful wherever a failure has to be detected remotely.

Measurable sound quality.
THD+N below 0.1 % keeps the signal faithful even at full output, with no audible colouration on speech or on music. A signal-to-noise ratio above 95 dB lets silence stay silent between two announcements. A damping factor above 200 keeps the driver under control for a well-defined result, including at the far end of a 100 V line.

Ready for Dante.
The AMP150.4H accepts the optional AMP-DANTE4 card, which moves all four channels onto the Dante audio network through two redundant RJ45 ports. An analogue amplifier today, ready for a networked installation tomorrow, without replacing the hardware.

Dante option

The AMP-DANTE4 card.

It moves all four amplifier channels onto the Dante audio network through two redundant RJ45 ports. It fits the rear expansion slot — no need to change amplifier.

View the AMP-DANTE4 card →

Connections and integration.
One Euroblock connector on the input and two on the output of each channel (wired in parallel), in the same format as the rest of the AMP H Series. Short-circuit, open-circuit, thermal, limiter, ultrasonic and radio-frequency protection as standard. Variable-speed fan cooling, 62.5 dB at 1 m, AC 220 – 240 V power supply.

The AMP150.4H is part of the Audiophony PA AMP H Series, available with 1, 4 or 8 channels, from 150 to 500 W per channel.

Key features:
• 4 independent channels, 70 V / 100 V selection on each channel
• Priority TEST input, triggered by a dry contact (PRI terminal)
• FAIL (5 V fault output), DIS (disable) and GND control contacts
• 2 parallel output terminals per channel
• Class D, 1U 19″ format, variable-speed fan
• Compatible with the optional AMP-DANTE4 Dante card

Technical specifications:
• Power at 100 V: 2 × 150 W (2 channels driven) / 4 × 135 W (74 Ω, 4 channels driven)
• Power at 70 V: 2 × 150 W (2 channels driven) / 4 × 135 W (36 Ω, 4 channels driven)
• Input sensitivity: 0.9 – 1.1 V (0 ±1 dBV)
• Input impedance: 20 kΩ balanced / 10 kΩ unbalanced
• Voltage gain (100 V): 40 dB
• Frequency response: 100 Hz – 15 kHz
• Signal-to-noise ratio: > 95 dB
• THD+N: < 0.1 %
• Damping factor: > 200
• Output voltages: 70 V / 100 V
• Power circuit: Class D switch-mode supply
• Power supply: AC 220 – 240 V, 50 / 60 Hz
• Protection: short circuit, open circuit, thermal, limiter, ultrasonic and radio frequencies
• Indicators: signal (green), clip (red), power (green), priority (orange), protection (red)
• Connections: 1 Euroblock input and 2 Euroblock outputs per channel, FAIL, DIS, PRI, GND and TEST control connectors
• Controls: ON/OFF switch and volumes on the front panel, voltage selectors at the rear
• Cooling: fan cooled, 62.5 dB at 1 m
• Dimensions: 483 × 44 × 360 mm, 19″ 1U
• Net weight: 5.4 kg

Packaging content:
• The amplifier
• A CE power cord
• Four rubber feet
• The user manual

Compatible loudspeakers

Every Audiophony PA 70 / 100 V line loudspeaker connects straight to the Euroblock outputs of the AMP H. All that matters is that the total tap power on each line stays below the channel rating.

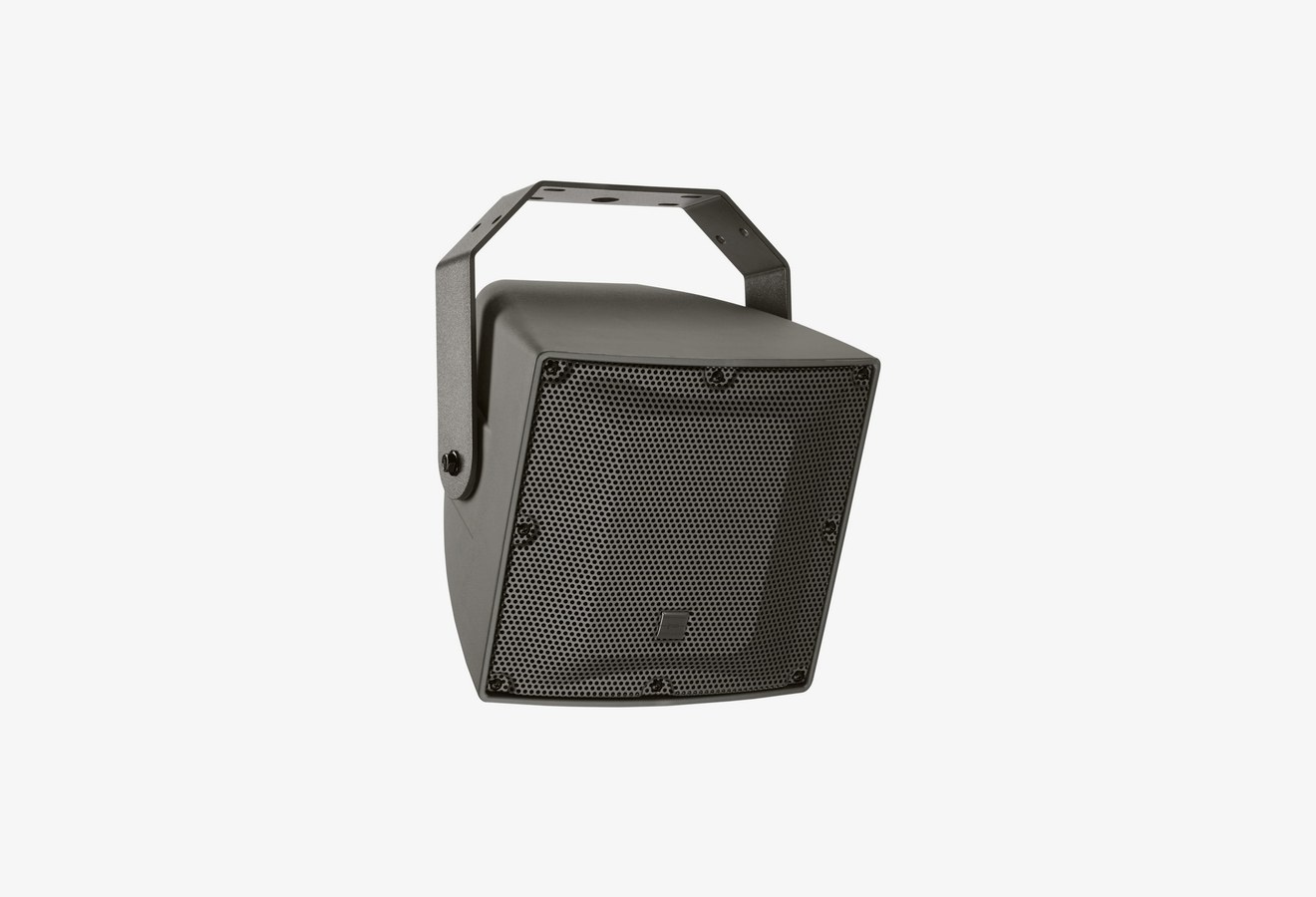

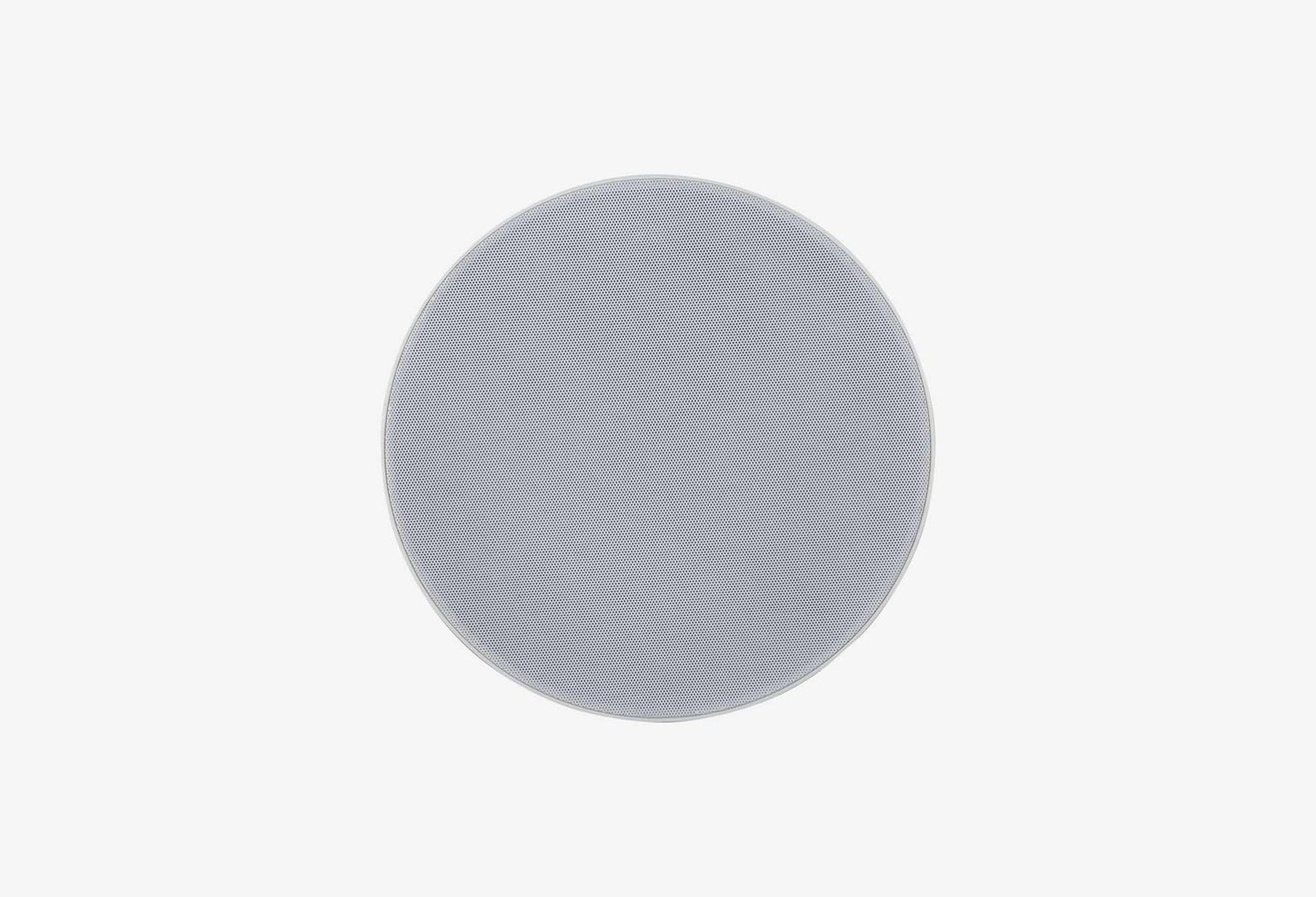

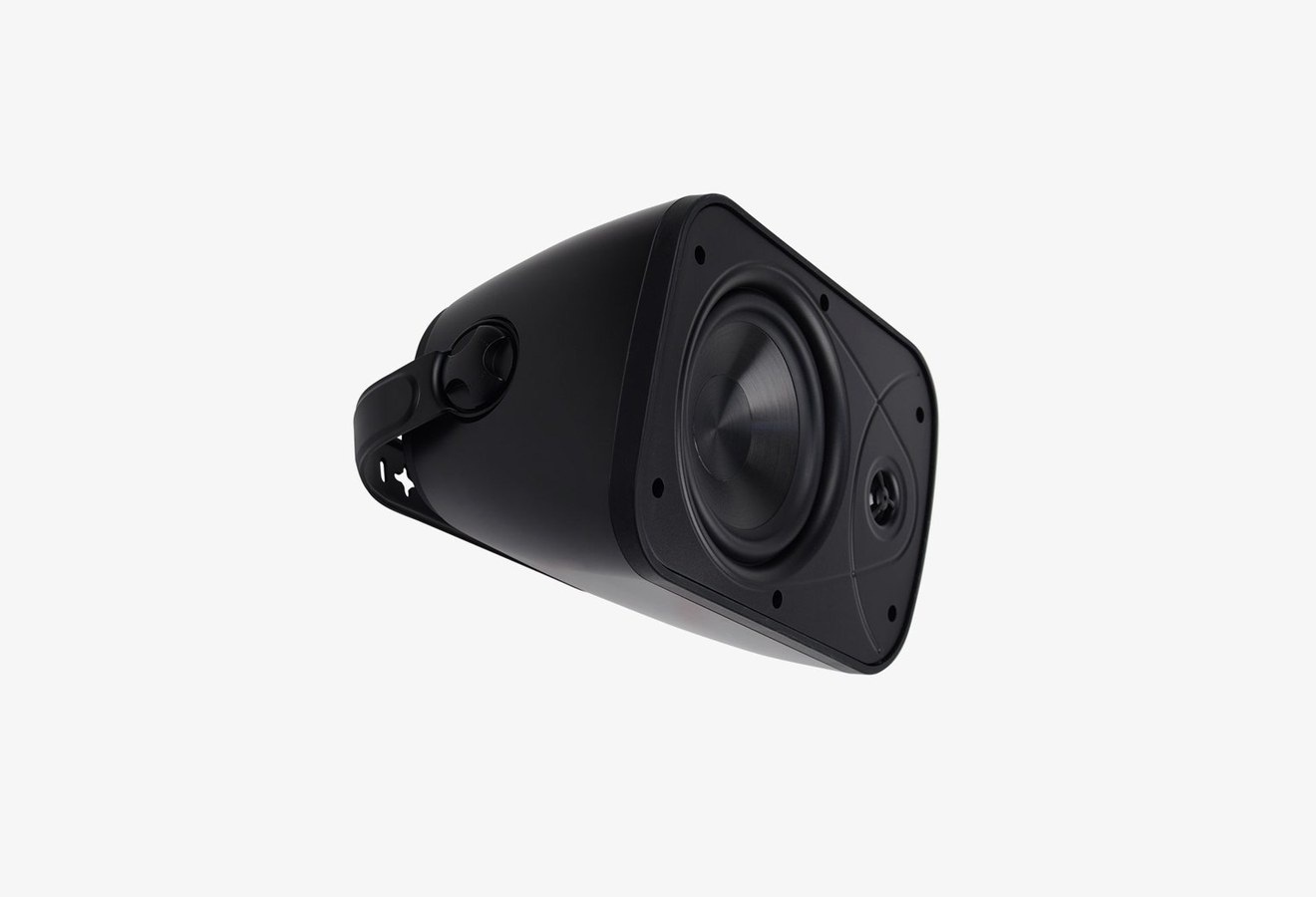

Wall-mount speakersONDE range100 V wall-mount cabinets, black or white, 5″ to 8″. For retail, reception areas and meeting rooms.Discover the ONDE range →Sound projectors & columnsEXT rangeSound projectors and column speakers built for outdoor areas and large volumes, on a 100 V line.Discover the EXT range →Suspended ceilingsCeiling speakersCHP and CHF flush-mount ceiling speakers for even, discreet coverage, from the office to the corridor.Discover our ceiling speakers →

4 channels · 150 W

Discover the AMP150.4H in detail.

Four independent zones, priority input, AMP-DANTE4 Dante option — the whole AMP H Series range in detail on the dedicated page.

Learn more →
