PACK-UHF410-Head-F5

A complete, ready-to-deploy system.

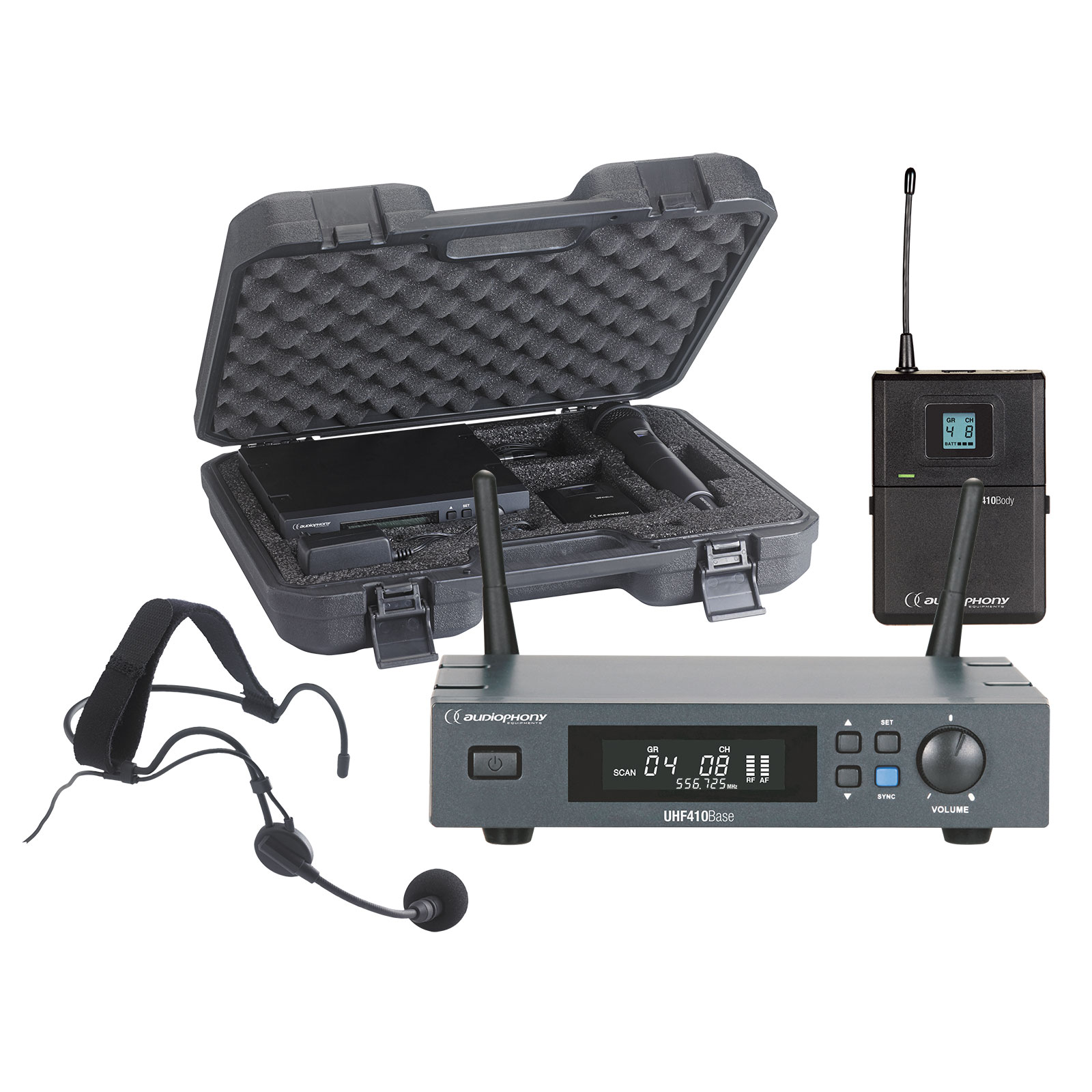

The PACK-UHF410-Head-F5 combines the UHF410-BASE-F5 receiver, the UHF410-Body-F5 bodypack transmitter, and the UHF410-Head headset microphone—a complete UHF diversity wireless system for both singing and speaking. Singers, entertainers, speakers, teachers: whatever the application, freedom of movement is paired with a stable signal and consistent sound quality. A system designed for both live performances and installations, ready to use right out of the box.



The receiver: reliable reception, even in a busy RF environment.

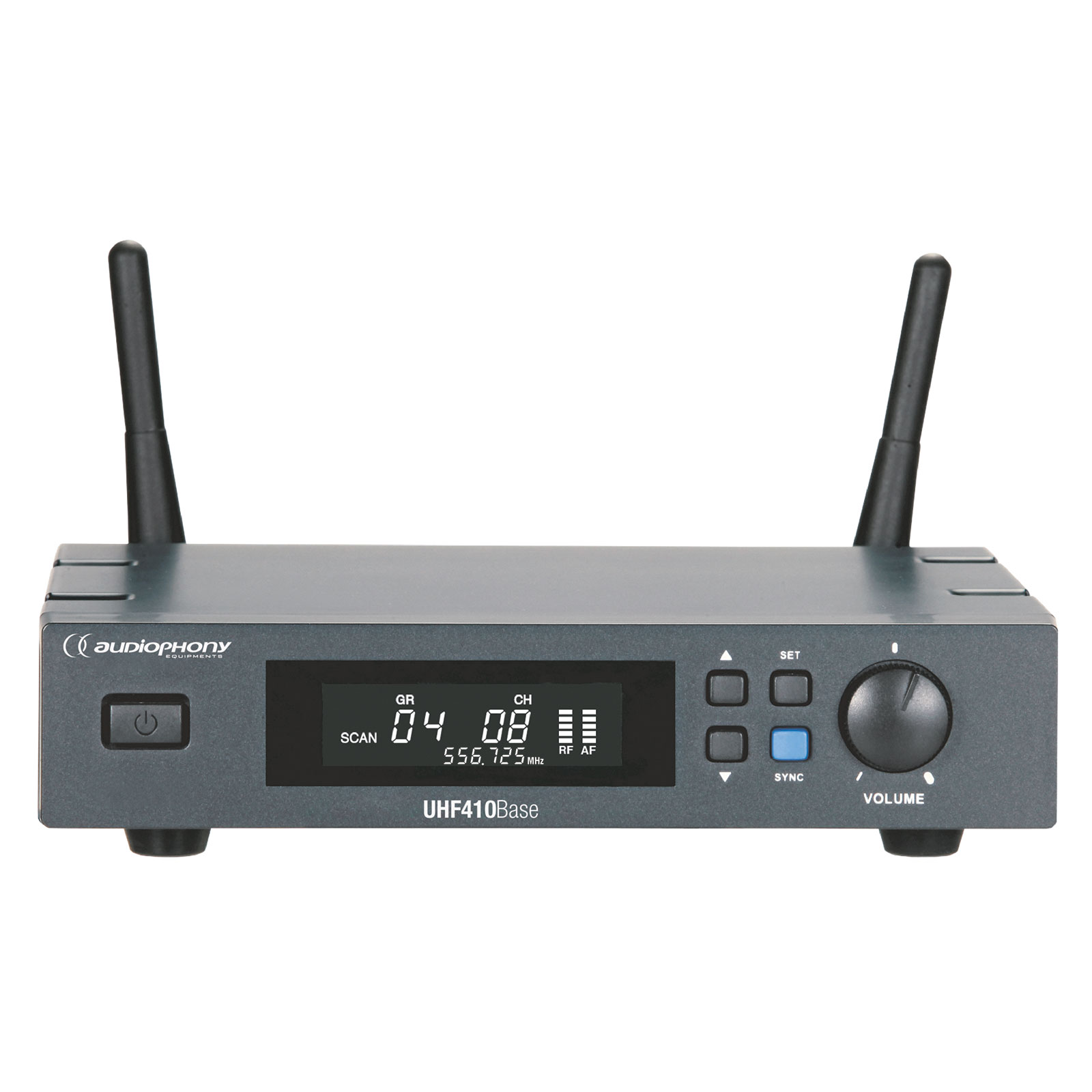

The UHF410-BASE-F5 features True Diversity reception: two antennas continuously pick up the signal, and the receiver selects the one with the best signal-to-noise ratio at any given moment. 997 programmable channels, divided into 8 groups of 16 compatible channels, with manual, touch, Auto-scan, or SYNC selection as needed. LCD screen simultaneously displays frequency, group, channel, and RF/AF levels. Half-rack format; can be mounted in a 19-inch rack in pairs using the dedicated accessory.



The bodypack transmitter: hands-free, without compromise.
The UHF410-Body-F5 is worn on the body and transmits the signal from the headset microphone to the receiver, allowing for complete freedom of movement. 997 channels with auto-scan, three gain levels (-20/-10/0 dB) to adjust the input sensitivity to the microphone being used, and an LCD screen displaying the channel and battery level.



The microphone: a condenser capsule for precise vocal reproduction.
The UHF410-Head features a unidirectional cardioid condenser capsule that primarily picks up the voice from the front and minimizes ambient noise. Frequency response from 100 Hz to 10 kHz, signal-to-noise ratio greater than 60 dB, and a windscreen included for clear sound reproduction in any situation.

A case for storage and transport.
The receiver comes with its own carrying case, designed to hold the entire system: receiver, transmitter, microphone, and cables. A complete, well-protected kit—no need for an additional case.

A system that evolves with your installation.
The PACK-UHF410-Head-F5 is just the starting point: the entire range of UHF410 accessories can be added to it as needed on-site. UHF410-Ant directional antenna to move the receiver outside a closed rack, signal boosters (UHF410-Boost, UHF410-Ant-Boost) to extend the range over a long extension cable, discreet UHF410-Ant-CeilingF5 for a hidden installation, the UHF410-Split splitter to share an antenna among multiple receivers, or the UHF410-Rack bracket for 19″ rack mounting. The basic package can be expanded into a complete professional installation without ever having to switch product lines.

Key Features:

• Complete Set: True Diversity Receiver + Belt-Pack Transmitter + Headset Microphone
• 997 preset channels, manual selection, touch selection, Auto-scan, or SYNC
• LCD screen on the receiver and transmitter (frequency/channel/battery)
• Micro condenser headset microphone, with included windscreen
• Carrying case included
• Half-rack size, can be mounted in a 19-inch rack in pairs
• Compatible with the entire UHF410 accessory line

Technical Specifications — UHF410-BASE-F5 Receiver:

• Reception Type: True Diversity
• Frequency range: 514–564 MHz
• Channels: 997 preset channels, 8 groups of 16 compatible channels
• Channel selection: manual, tact switch, Auto-scan, SYNC
• Display: LCD (frequency, group, channel, RF, AF)
• Oscillator: PLL synthesizer
• Frequency stability: ± 0.005%
• Modulation: FM
• THD: < 1% (@1 kHz)
• Audio frequency response: 80 Hz to 18 kHz
• Audio outputs: Balanced XLR, unbalanced 6.35 jack
• Output level: line or mic
• Controls: volume via a rotary knob on the front panel, squelch on the back
• Antennas: Detachable BNC connectors
• Power supply: 12 V DC (adapter included)
• Current consumption: 260 mA ± 10 mA
• Dimensions: 200 × 42 × 183 mm (19″ rack-mountable, 2U)

Technical Specifications — UHF410-Body-F5 Belt Transmitter:

• Transmission Type: True Diversity
• Frequency range: 514–564 MHz
• Output power: 35 mW (max.)
• Channels: 997 preset, Auto-scan feature
• Display: LCD (channel, battery level)
• Microphone input: mini XLR
• Gain level: -20 / -10 / 0 dB
• Power supply: 2 AA 1.5 V batteries (not included)
• Average battery life: 10 hours
• Dimensions: 98 × 65 × 25 mm (+ 75 mm for the antenna)

Technical Specifications — UHF410-Head Headset Microphone:

• Microphone type: condenser capsule
• Sensitivity: -47 ± 4 dB
• Polar pattern: unidirectional cardioid
• Frequency response: 100 Hz – 10 kHz
• Signal-to-noise ratio: greater than 60 dB
• Included accessory: windscreen
• Connectors: mini XLR

Pack contents:

• 1 UHF410-BASE-F5 receiver with carrying case
• 1 UHF410-Body-F5 belt-mounted transmitter
• 1 UHF410-Head Micro Headset
• 1 12 V DC power adapter
