PACK-UHF410-Head-F8

A turnkey system.
The PACK-UHF410-Head-F8 combines the UHF410-Base-F8 receiver, the UHF410-Body-F8 bodypack transmitter, and the UHF410-Head headset mic into a complete UHF diversity wireless system, equally suited to singing and speaking. Vocalists, hosts, speakers, teachers: no matter the setting, mobility comes paired with a dependable signal and consistent sound quality. Built for touring work and fixed installs in equal measure, ready to run right out of the box.

The receiver: dependable even when the RF spectrum gets crowded.
Two antennas track the signal continuously, and True Diversity reception lets the UHF410-Base-F8 automatically switch to whichever delivers the cleanest signal-to-noise ratio. 442 programmable channels, organized into 4 groups of 8 mutually compatible channels, selectable via tact switch, Auto-scan, or SYNC. The LCD display shows frequency, group, channel, and RF/AF levels all at once. Half-rack footprint, with the option to pair two units into a single 19″ space.

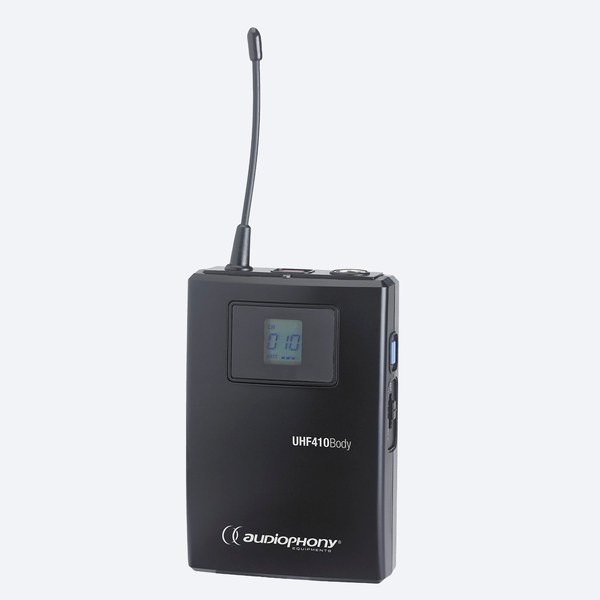

The bodypack: mobility with nothing left out.
Worn on the belt, the UHF410-Body-F8 relays the headset mic’s signal to the receiver, for complete freedom of movement. 442 programmable channels with Auto-scan, three gain settings (-20/-10/0 dB) to fine-tune input sensitivity to whichever mic is connected, LCD display showing the active channel and battery level.

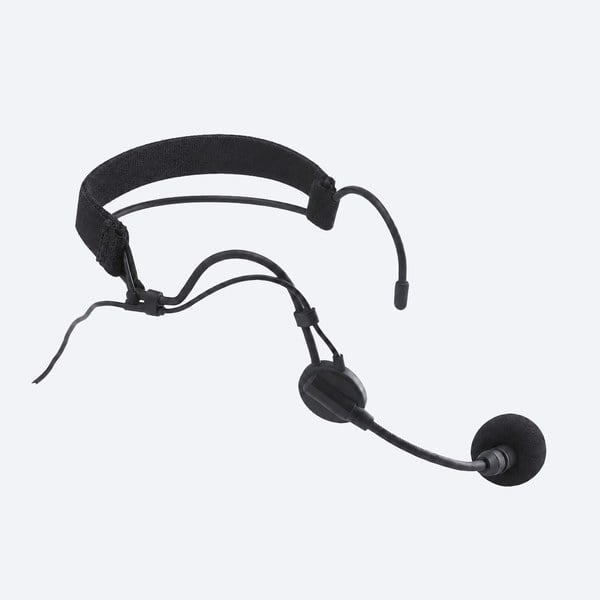

The mic: a condenser capsule built for precision.
The UHF410-Head runs a condenser capsule with a unidirectional cardioid pattern, favoring voice from the front while cutting down on surrounding noise. Frequency response from 100 Hz to 10 kHz, signal-to-noise ratio above 60 dB, windscreen included for a clean sound in any setting.

A case built for both storage and travel.
The receiver comes with its own carry case, sized to fit the entire system: receiver, transmitter, mic, and cables. A self-contained, protected kit that needs no extra case on top.

A system built to grow.
The PACK-UHF410-Head-F8 is a starting point, not a finish line: the whole UHF410 accessory lineup connects to it as each installation demands. The UHF410-Ant directional antenna to pull reception out of a closed rack, signal boosters (UHF410-Boost, UHF410-Ant-Boost) to stretch range over a long cable run, the discreet UHF410-Ant-CeilingF8 ceiling antenna for an install that disappears from view, the UHF410-Split splitter to share one antenna across several receivers, or the UHF410-Rack bracket for 19″ rack mounting. What starts as a basic pack turns into a full professional install, all within the same product line.

Key features:

• Complete pack: True Diversity receiver, bodypack transmitter, and headset mic
• 442 programmable channels, tact-switch, Auto-scan, or SYNC selection
• Dual LCD display on receiver and transmitter (frequency/channel/battery)
• Condenser capsule headset mic, windscreen included
• Carry case included
• Half-rack footprint, two units per 19″ rack space
• Full compatibility with the UHF410 accessory lineup

Technical specifications — UHF410-Base-F8 receiver:

• Reception type: True Diversity
• Frequency range: 823 – 832 MHz and 863 – 865 MHz
• Channels: 442 programmable, 4 groups of 8 compatible channels
• Channel selection: tact switch, Auto-scan, SYNC
• Display: LCD (frequency, group, channel, RF, AF)
• Oscillator: PLL synthesizer
• Frequency stability: ± 0.005 %
• Modulation: FM
• THD: < 1 % (@1 kHz)
• Audio frequency response: 80 Hz to 18 kHz
• Audio outputs: balanced XLR, unbalanced 1/4″ jack
• Output level: line or mic
• Controls: front-panel rotary volume, rear-panel squelch
• Antennas: detachable BNC
• Power: 12 V DC (adapter included)
• Current draw: 260 mA ± 10 mA
• Dimensions: 200 × 42 × 183 mm (half-rack, pairs to full 19″)

Technical specifications — UHF410-Body-F8 bodypack transmitter:

• Transmission type: True Diversity
• Frequency range: 823 – 832 MHz and 863 – 865 MHz
• Output power: 10 mW (max.)
• Channels: 442 programmable, Auto-scan function
• Display: LCD (channel, battery level)
• Mic input: mini XLR
• Gain level: -20 / -10 / 0 dB
• Power: 2 AA 1.5 V batteries (not included)
• Average runtime: 10 hours
• Dimensions: 98 × 65 × 25 mm (+75 mm for the antenna)

Technical specifications — UHF410-Head headset mic:

• Mic type: condenser capsule
• Sensitivity: -47 ± 4 dB
• Polar pattern: unidirectional cardioid
• Frequency response: 100 Hz – 10 kHz
• Signal-to-noise ratio: above 60 dB
• Included accessory: windscreen
• Connection: mini XLR

Package contents:

• 1 UHF410-Base-F8 receiver with carry case
• 1 UHF410-Body-F8 bodypack transmitter
• 1 UHF410-Head headset mic
• 1 12 V DC mains adapter
