PACK-UHF410-Lava-F5

A complete, ready-to-deploy system.
The PACK-UHF410-Lava-F5 combines the UHF410-BASE-F5 receiver, the UHF410-Body-F5 bodypack transmitter, and the UHF410-Lava lavalier microphone—a complete UHF diversity wireless system for both singing and speaking. Singers, emcees, speakers, teachers: whatever the application, freedom of movement is paired with a stable signal and consistent quality. A system designed for both live performances and installations, ready to use right out of the box.



The receiver: reliable reception, even in a busy RF environment.
The UHF410-BASE-F5 features True Diversity reception: two antennas continuously pick up the signal, and the receiver selects the one with the best signal-to-noise ratio at any given moment. 997 programmable channels, divided into 8 groups of 16 compatible channels, with manual, touch, Auto-scan, or SYNC selection as needed. LCD screen simultaneously displays frequency, group, channel, and RF/AF levels. Half-rack format; can be mounted in a 19-inch rack in pairs using the dedicated accessory.

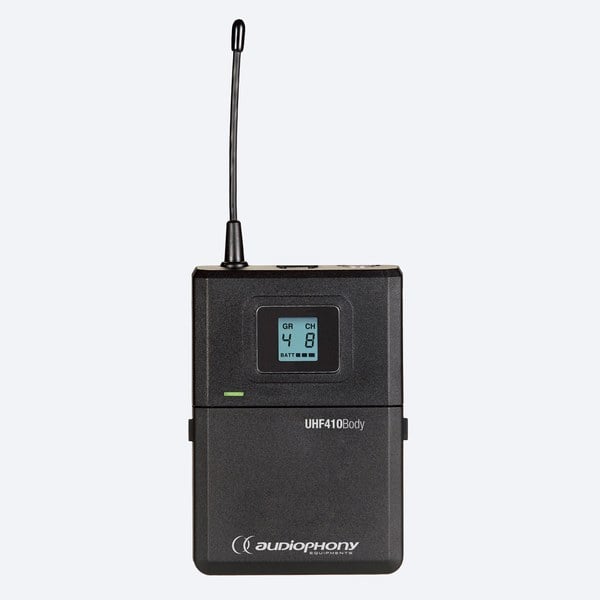

The bodypack transmitter: hands-free, without compromise.
The UHF410-Body-F5 is worn on the body and transmits the signal from the lavalier microphone to the receiver, allowing for complete freedom of movement. 997 channels with auto-scan, three gain levels (-20/-10/0 dB) to adjust the input sensitivity to the microphone being used, and an LCD screen displaying the channel and battery level.

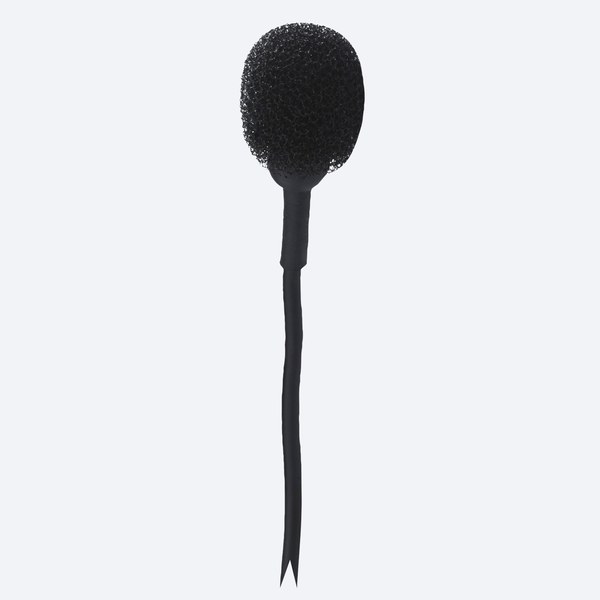

The microphone: wide and uniform sound pickup.
The UHF410-Lava is a discreet lavalier microphone; its small size (37 mm, 5.5 mm in diameter) makes it particularly inconspicuous when clipped to clothing. The omnidirectional condenser capsule captures sound evenly from all around the microphone, ensuring a natural sound regardless of the speaker’s position. Frequency response: 50 Hz to 10 kHz; signal-to-noise ratio greater than 58 dB. Windscreen and clip included.

A case for storage and transport.
The receiver comes with its own carrying case, designed to hold the entire system: receiver, transmitter, microphone, and cables. A complete, well-protected kit—no need for an additional case.

A system that evolves with your installation.
The PACK-UHF410-Lava-F5 is just a starting point: the entire range of UHF410 accessories can be added to it as needed on-site. UHF410-Ant directional antenna to move reception outside a closed rack, signal boosters (UHF410-Boost, UHF410-Ant-Boost) to extend range over a long extension cable, discreet UHF410-Ant-CeilingF5 for a hidden installation, the UHF410-Split splitter to share one antenna among multiple receivers, or the UHF410-Rack bracket for 19″ rack mounting. The basic package can be expanded into a complete professional installation without ever switching product lines.

Key Features:

• Complete package: True Diversity receiver + belt-pack transmitter + lavalier microphone
• 997 preset channels, manual selection, touch selection, Auto-scan, or SYNC
• LCD screen on the receiver and transmitter (frequency/channel/battery)
• Discreet lavalier microphone; includes a condenser capsule, windscreen, and clip
• Carrying case included
• Half-rack size, can be mounted in a 19-inch rack in pairs
• Compatible with the entire UHF410 accessory line

Technical Specifications — UHF410-BASE-F5 Receiver:

• Reception Type: True Diversity
• Frequency range: 514–564 MHz
• Channels: 997 preset channels, 8 groups of 16 compatible channels
• Channel selection: manual, tact switch, Auto-scan, SYNC
• Display: LCD (frequency, group, channel, RF, AF)
• Oscillator: PLL synthesizer
• Frequency stability: ± 0.005%
• Modulation: FM
• THD: < 1% (@1 kHz)
• Audio frequency response: 80 Hz to 18 kHz
• Audio outputs: Balanced XLR, unbalanced 6.35 jack
• Output level: line or mic
• Controls: volume via a rotary knob on the front panel, squelch on the back
• Antennas: Detachable BNC connectors
• Power supply: 12 V DC (adapter included)
• Current consumption: 260 mA ± 10 mA
• Dimensions: 200 × 42 × 183 mm (19″ rack-mountable, 2U)

Technical Specifications — UHF410-Body-F5 Belt Transmitter:

• Transmission Type: True Diversity
• Frequency range: 514–564 MHz
• Output power: 35 mW (max.)
• Channels: 997 preset, Auto-scan feature
• Display: LCD (channel, battery level)
• Microphone input: mini XLR
• Gain level: -20 / -10 / 0 dB
• Power supply: 2 AA 1.5 V batteries (not included)
• Average battery life: 10 hours
• Dimensions: 98 × 65 × 25 mm (+ 75 mm for the antenna)

Technical Specifications — UHF410-Lava Lavalier Microphone:

• Sensitivity: -42 ± 3 dB
• Polar pattern: omnidirectional
• Frequency response: 50 Hz – 10 kHz
• Signal-to-noise ratio: greater than 58 dB
• Included accessories: windscreen and mounting pin
• Connectors: mini XLR
• Dimensions: 37 mm × Ø 5.5 mm

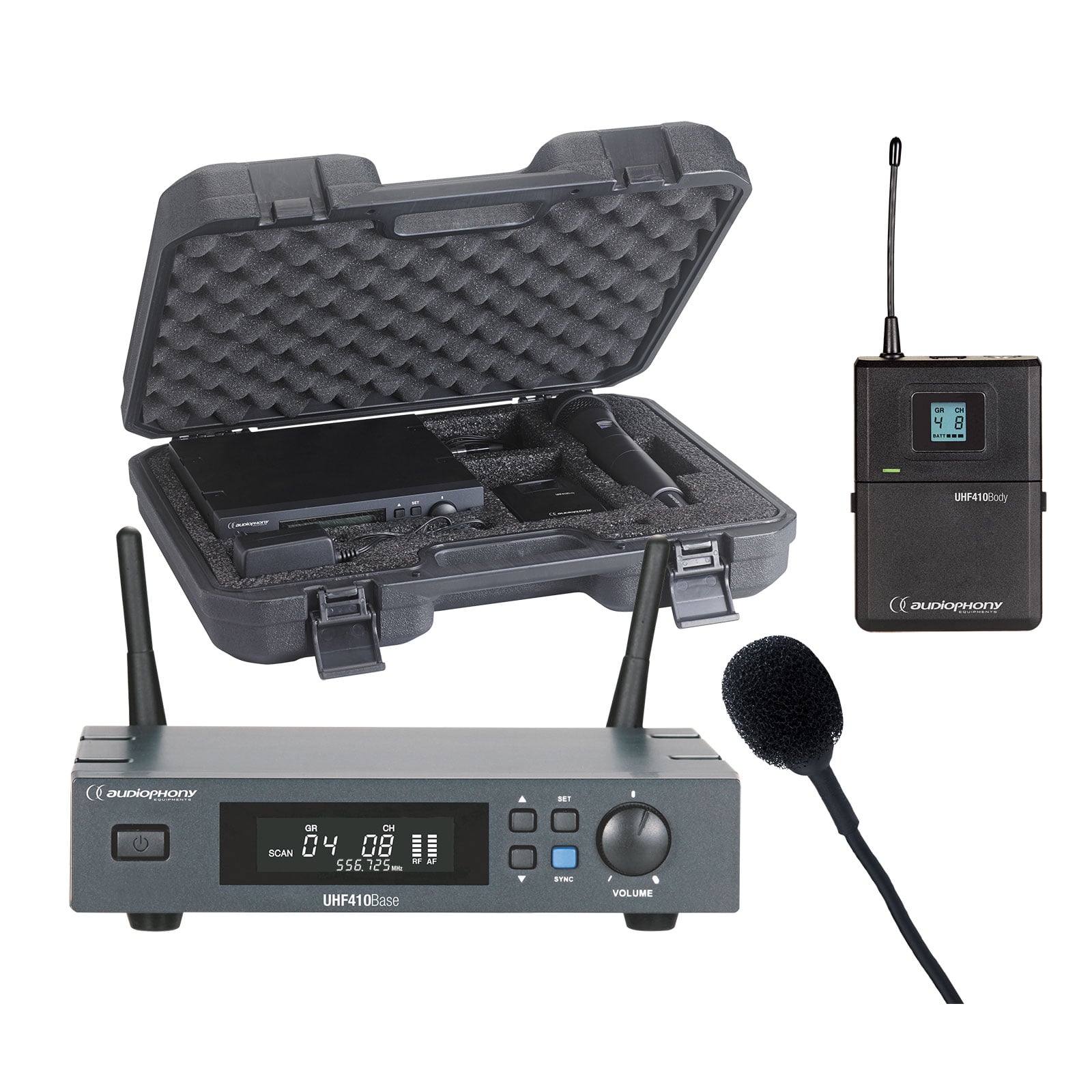

Pack contents:

• 1 UHF410-BASE-F5 receiver with carrying case
• 1 UHF410-Body-F5 belt-mounted transmitter
• 1 UHF410-Lava lavalier microphone
• 1 12 V DC power adapter
