PACK-UHF410-Hand-F8

A turnkey system.
The PACK-UHF410-Hand-F8 pairs the UHF410-Base-F8 receiver with the UHF410-Hand-F8 handheld mic to form a UHF diversity wireless system suited to singing and speaking alike. Vocalists, hosts, speakers, teachers: no matter the setting, mobility comes paired with a dependable signal and consistent sound quality. Built for touring work and fixed installs in equal measure, ready to run right out of the box.

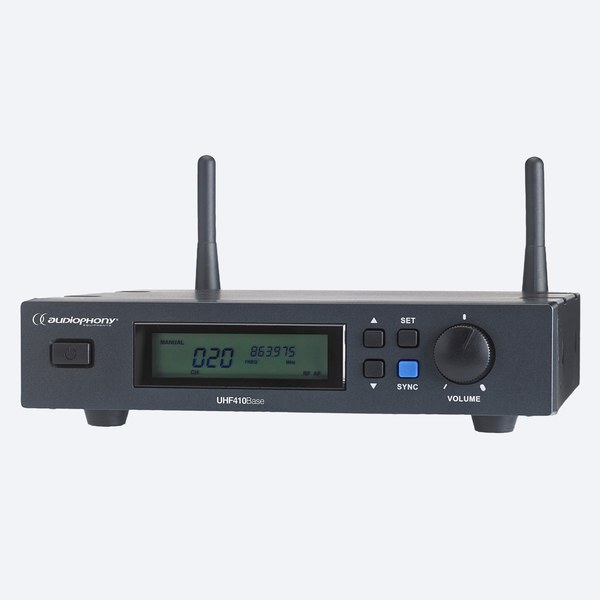

The receiver: dependable even when the RF spectrum gets crowded.
Two antennas track the signal continuously, and True Diversity reception lets the UHF410-Base-F8 automatically switch to whichever delivers the cleanest signal-to-noise ratio. 442 programmable channels, organized into 4 groups of 8 mutually compatible channels, selectable via tact switch, Auto-scan, or SYNC. The LCD display shows frequency, group, channel, and RF/AF levels all at once. Half-rack footprint, with the option to pair two units into a single 19″ space.

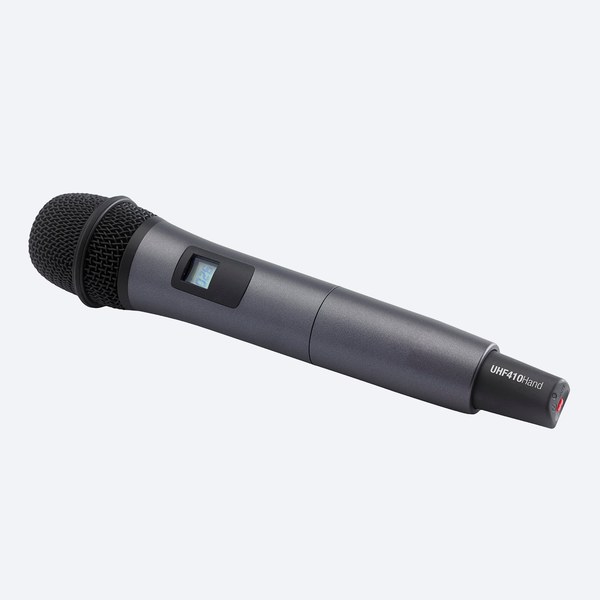

The mic: True Diversity transmission that goes beyond reception.
The UHF410-Hand-F8 does more than transmit: it builds True Diversity right into the microphone itself, keeping the link stable from the very source. 442 programmable channels, plus a SYNC function that carries the receiver’s setting straight over to the mic, skipping any double manual configuration. An LCD display keeps the active channel and battery level in view.

A case built for both storage and travel.
The receiver comes with its own carry case, sized to fit the entire system: receiver, mic, and cables. A self-contained, protected kit that needs no extra case on top.

A system built to grow.
The PACK-UHF410-Hand-F8 is a starting point, not a finish line: the whole UHF410 accessory lineup connects to it as each installation demands. The UHF410-Ant directional antenna to pull reception out of a closed rack, signal boosters (UHF410-Boost, UHF410-Ant-Boost) to stretch range over a long cable run, the discreet UHF410-Ant-CeilingF8 ceiling antenna for an install that disappears from view, the UHF410-Split splitter to share one antenna across several receivers, or the UHF410-Rack bracket for 19″ rack mounting. What starts as a basic pack turns into a full professional install, all within the same product line.

Key features:

• Complete pack: True Diversity receiver paired with a True Diversity handheld mic
• 442 programmable channels, tact-switch, Auto-scan, or SYNC selection
• Dual LCD display (frequency/channel/battery)
• Carry case included
• Half-rack footprint, two units per 19″ rack space
• Full compatibility with the UHF410 accessory lineup

Technical specifications — UHF410-Base-F8 receiver:

• Reception type: True Diversity
• Frequency range: 823 – 832 MHz and 863 – 865 MHz
• Channels: 442 programmable, 4 groups of 8 compatible channels
• Channel selection: tact switch, Auto-scan, SYNC
• Display: LCD (frequency, group, channel, RF, AF)
• Oscillator: PLL synthesizer
• Frequency stability: ± 0.005 %
• Modulation: FM
• THD: < 1 % (@1 kHz)
• Audio frequency response: 80 Hz to 18 kHz
• Audio outputs: balanced XLR, unbalanced 1/4″ jack
• Output level: line or mic
• Controls: front-panel rotary volume, rear-panel squelch
• Antennas: detachable BNC
• Power: 12 V DC (adapter included)
• Current draw: 260 mA ± 10 mA
• Dimensions: 200 × 42 × 183 mm (half-rack, pairs to full 19″)

Technical specifications — UHF410-Hand-F8 mic:

• Capsule type: condenser
• Transmission type: True Diversity
• Frequency range: 823 – 832 MHz and 863 – 865 MHz
• Output power: 10 mW (max.)
• Channels: 442 programmable, SYNC function
• Display: LCD (channel, battery level)
• Power: 2 AA 1.5 V batteries (not included)
• Average runtime: 10 hours
• Dimensions: 260 mm × Ø 54 mm

Package contents:

• 1 UHF410-Base-F8 receiver with carry case
• 1 UHF410-Hand-F8 handheld mic
• 1 12 V DC mains adapter
